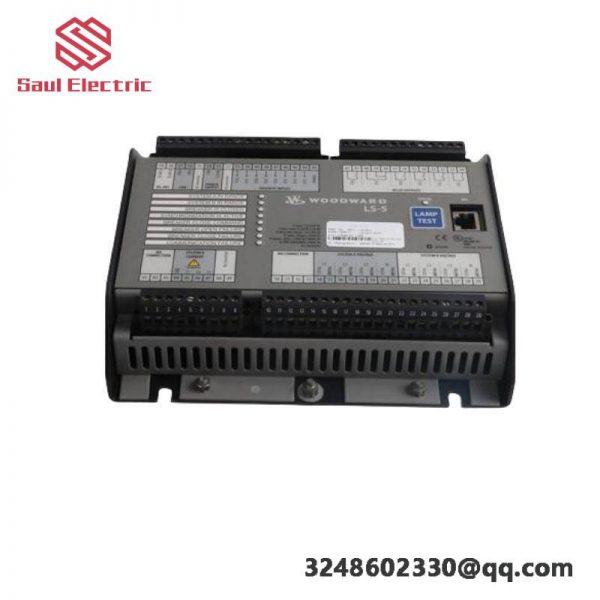

Woodward 8440-1946 LS-5 Series Relay: Industrial Control Module

Description

Operating Voltage:24V DC

Contact Rating:10A @ 24VDC, 3A @ 115VAC

Relay Type:SPDT (Single Pole, Double Throw)

Operating Temperature Range:-40°C to +70°C

Load Rating:Continuous 5A, Short-Circuit 10A

Insulation Resistance:> 100MΩ at 500VDC

Housing Material:Dielectric Polycarbonate

Relay Life Expectancy:Over 100,000 cycles

    The Woodward 8440-1946 LS-5 Series relay module is engineered to meet the stringent demands of industrial automation environments, providing unparalleled reliability and accuracy in control systems.

    Featuring a robust dielectric polycarbonate housing, this relay module ensures durability and resistance to harsh environmental conditions, ensuring long-term operation in a wide range of temperatures (-40°C to +70°C).

    With a contact rating of 10A at 24VDC and 3A at 115VAC, the module is capable of handling demanding loads while maintaining exceptional switching performance. Its SPDT design offers versatile switching options for various applications.

    Each relay is meticulously tested to ensure a minimum life expectancy of over 100,000 cycles, backed by Woodward’s commitment to quality and reliability. This makes the 8440-1946 LS-5 Series ideal for mission-critical systems where downtime is unacceptable.

    Equipped with advanced insulation resistance capabilities (> 100MΩ at 500VDC), the relay module ensures isolation and safety in electrical circuits, protecting sensitive equipment from voltage surges and ensuring operational integrity.
