Description
Product Type:Simplex Discrete I/O Module
Brand:WOODWARD
Model:5466-258
Operating Temperature Range:0-55°C
Storage Temperature:-40 to +105°F
Weight:48 lbs. (22 kg)
Power Consumption:24 VDC
Number of Channels:48 Inputs, 24 Outputs
Isolation Voltage:500 VDC to Earth Ground, 1000 VDC to Control Common
Input Type:Galvanically Isolated
Module Type:Simplex
Series:Micronet Digital Control

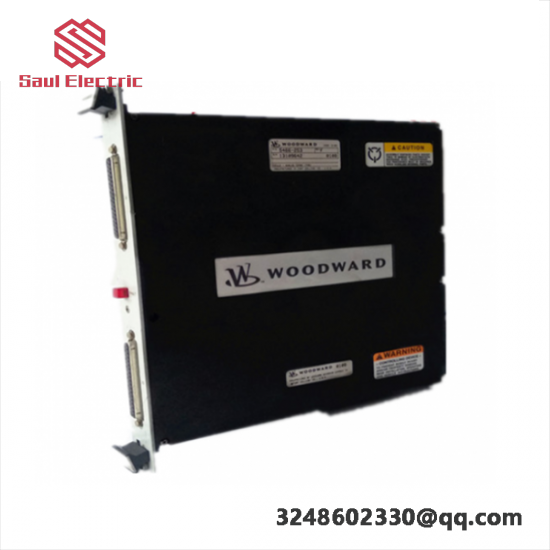

The WOODWARD 5466-258 Discrete I/O Module is a high-performance solution designed for seamless integration into industrial automation systems, ensuring reliable operation under demanding conditions.
Featuring a simplex design, this module offers 48 inputs and 24 outputs, providing ample connectivity for complex control applications. Its robust construction withstands extreme temperatures and harsh environments, making it ideal for factory floors, power plants, and other industrial settings.
Equipped with galvanically isolated inputs and a 24 VDC power supply, the module ensures signal integrity and safety in electrical systems. The CPU5200 ensures efficient processing, while the isolation voltage guarantees protection against electrical surges.
With its MicroNet Plus compatibility, the 5466-258 module supports advanced diagnostics and monitoring, allowing users to easily troubleshoot issues and optimize system performance. The inclusion of a manual (26167V1) provides detailed guidance on installation, configuration, and troubleshooting.
Designed with durability in mind, the module’s compact size and lightweight build (0.86 kg) make it easy to install and integrate into existing systems. Its comprehensive specifications, including overvoltage rating and listings, ensure compatibility and regulatory compliance across various industries.
