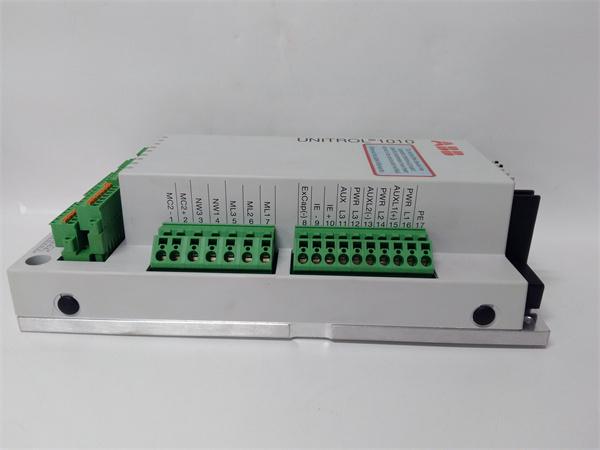

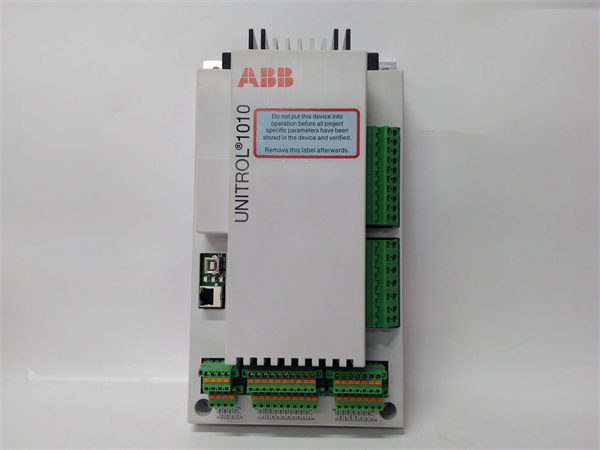

UNITROL-1010 ABB brushless excitation system

Description

The UNITROL-1010 ABB Brushless excitation system is a voltage regulator designed for small and medium-sized synchronous generators and industrial machines, belonging to the UNITROL 1000 series. The following are the main features and functions of the system:

System overview:
UNITROL 1010 is a powerful and miniaturized indirect excitation system with built-in support for dual channels for advanced load distribution, rotating diode monitoring, automatic synchronization and a variety of all-in-one communication options in parallel running units.
The system is based on advanced microprocessor technology that allows IGBT semiconductor devices with current outputs up to 10ADC for continuous operation, with high performance in harsh conditions and varying temperature ranges.
Technical specifications:
Current output: Current output up to 10ADC for continuous operation.
Compatibility: Fully compliant with DNV and UL standards.
Additional features: Ethernet, USB connectivity, data and event logging and many other new features.
Main features:
High performance: Based on advanced microprocessor technology and IGBT semiconductor devices, to ensure efficient and stable operation of the system.
Versatility: Support for dual-channel operation, providing advanced load distribution, rotating diode monitoring, automatic synchronization and integrated communication.
High reliability: Fully compliant with DNV and UL standards, ensuring reliable operation under all conditions.
Ease of use: New functions such as Ethernet and USB connection are added to facilitate data transmission and system monitoring.
Application field:
UNITROL 1010 is suitable for small and medium-sized synchronous generators and industrial machines, widely used in power, oil, mine lifting, port, heating, gas, water supply, sewage treatment, metallurgy, paper, textile, chemical, water conservancy and other modern industrial fields.
Additional features:
The UNITROL 1010 also features multi-channel analog inputs, high-speed sampling rates, high resolution, flexible input range and gain control, enabling it to be adapted to a wide range of measurement and data acquisition applications.
Supports external trigger and synchronous operation functions, suitable for multi-device collaboration and complex system integration.
Software support and development tools, such as LabVIEW, NI-DAQmx and NI-SystemLink, are provided to facilitate data acquisition, signal processing and analysis.
