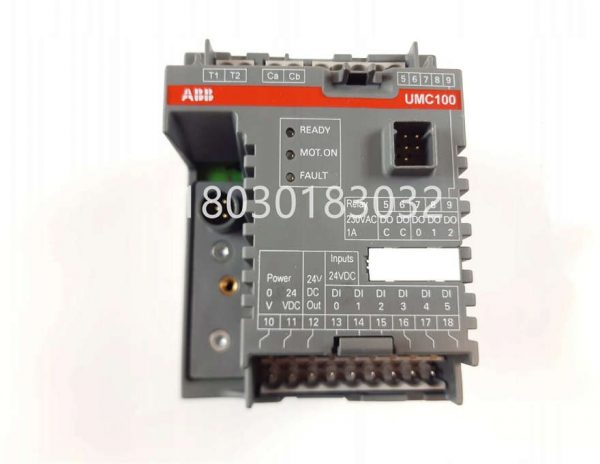

UMC100-FBP motor comprehensive protector

Description

The UMC100-FBP motor comprehensive protector is a high-performance device used for comprehensive and comprehensive management, control, and protection of electric motors.
1、 Product Overview
The UMC100-FBP motor comprehensive protector is produced by well-known manufacturers such as ABB. It integrates multiple protection functions, such as overload, underload, high current, undercurrent, overvoltage, undervoltage, locked rotor and long starting time, phase loss, phase imbalance, phase sequence error, grounding fault, etc. It can monitor the operating status of the motor in real time and take timely measures when faults occur to reduce the downtime of the motor and improve the production efficiency of the enterprise.
2、 Main functions
Motor protection function:
Overload protection: When the motor is overloaded, the protector will promptly cut off the power supply to prevent the motor from overheating and damage.
Underload protection: When the load on the motor is too low, the protector will also issue a warning or cut off the power supply to avoid damage to the motor due to prolonged idling.
Phase loss protection: Real time monitoring of the power input of the motor. Once a phase loss occurs, the protector will immediately take measures to prevent damage to the motor due to phase loss operation.
Other protection functions include high current, undercurrent, overvoltage, undervoltage, locked rotor, and long starting time protection, ensuring that the motor can receive timely and effective protection in various abnormal situations.
Motor control function:
Preset control function: allows users to preset the control parameters of the motor according to actual needs, such as starting mode, running time, etc.
Direct starting, forward and reverse starting, star angle starting, dual speed starting, etc.: Provides multiple starting methods to meet the needs of different application scenarios.
Overload relay mode, actuator mode, etc.: The appropriate control mode can be selected according to the load characteristics and operating requirements of the motor.
Monitoring, maintenance, and diagnostic functions:
Real time monitoring of motor operation data, such as three-phase current, maximum starting current, heat capacity value, etc., helps users understand the operating status of the motor.
Provide maintenance data such as motor running time, starting frequency, and tripping frequency to facilitate regular maintenance and upkeep of the motor by users.
It has diagnostic functions such as fault and alarm information, self check information, communication fault information, etc., and can timely detect and handle abnormal situations during the operation of the motor.
3、 Product Features
High reliability: Advanced electronic technology and reliable components are used to ensure that the protector can work stably in various harsh environments.
High precision: capable of real-time monitoring and accurate calculation of motor operating parameters and fault information, providing accurate protection and control.
Easy to operate: With a user-friendly interface and intuitive operation method, it is convenient for users to set parameters and troubleshoot.
Scalability: Supports multiple expansion modules and communication interfaces, making it convenient for users to expand functions and integrate systems according to their actual needs.
4、 Application Fields
The UMC100-FBP motor comprehensive protector is widely used in various industrial fields, such as petroleum, natural gas, cement, steel, mining, chemical plants, water supply plants, power plants, food and packaging industries, etc. It is suitable for the protection and control of various low-voltage constant speed motors, enabling effective management of motors and improving equipment utilization and efficiency.
