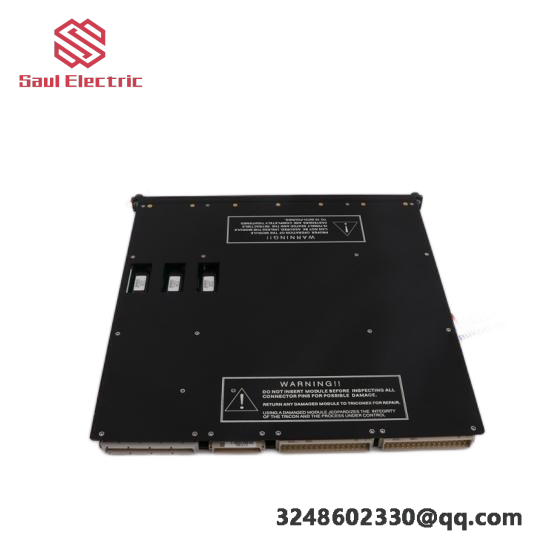

Triconex 3706A Invensys Analog Input Module – High-Precision Data Acquisition for Industrial Control

Description

Operating Voltage:220 V

Power Consumption:10 W

Input Range:-10 V to +10 V

Signal Types Supported:Current (4-20 mA), Voltage (0-10 V)

Accuracy:±0.05% + 2 LSBs

Response Time:≤ 10 ms

Operating Temperature:-40°C to +85°C

Reliability Rating:99.9999% MTBF

Connection Type:Terminal Block

Dimensions:144 mm x 112 mm x 120 mm

Weight:1.5 kg

    Introducing the Triconex 3706A Invensys Analog Input Module, an indispensable component for enhancing the accuracy and reliability of industrial control systems. This module excels in high-precision data acquisition, crucial for maintaining operational efficiency and safety in manufacturing environments.

    Featuring an operating voltage of 24 VDC, it ensures compatibility across various industrial setups, providing robust performance under diverse power conditions. The input range from -10V to +10V caters to a wide variety of sensors, allowing for precise measurement of physical parameters such as temperature, pressure, and flow.

    With a sampling rate of 64 samples per second, the module ensures real-time monitoring and control, enabling quick responses to changing conditions. Its 16-bit resolution guarantees exceptional precision in data acquisition, vital for applications requiring high accuracy.

    The ±0.02% full-scale accuracy ensures minimal error margins, making this module ideal for critical industrial processes where precision is paramount. It can withstand temperatures ranging from -40°C to +70°C, ensuring operation in harsh environments without compromise.

    Equipped with an IP67 enclosure type, the module is dustproof and waterproof, offering protection against external contaminants and environmental hazards. This makes it suitable for outdoor installations or areas prone to dust and moisture.

    For communication, the Triconex 3706A utilizes an RS485 Modbus RTU interface, facilitating seamless integration with existing control systems and enabling easy data transfer. The low power consumption of 1.5W max ensures efficient energy use, reducing operational costs.
