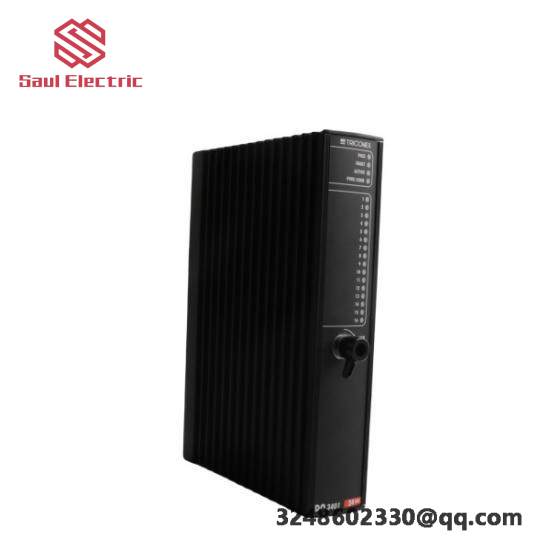

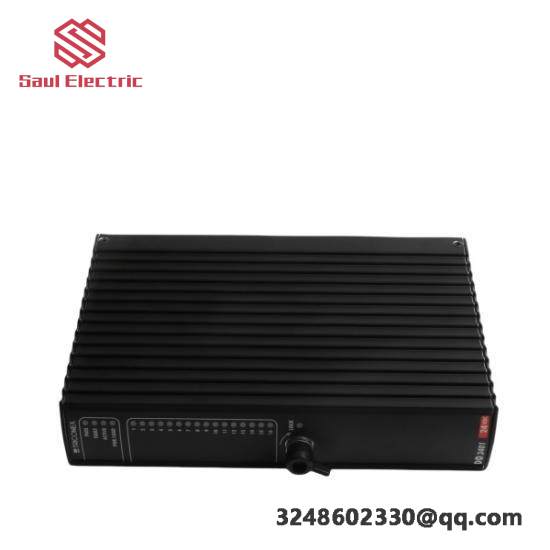

Triconex 3401 Digital Output Module; TRICONEX

Description

Model Type:Digital Output Module

Manufacturer:Triconex

Model Number:3401

Output Channels:16

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:-0.6 VDC

Output Current (Switching):<4.8 A, self-limiting

Output Current (Typical):3.0 A

Degraded Mode Output Current:> 0.7 A, self-limiting

Degraded Mode Output Current (Typical):1.5 A

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region, 6–14 VDC = transition region, 15–30 VDC = On region

Leakage to Load (Off):Minimum

Communication Protocol:TriStation/TPS

Environmental Rating:IP67

Operating Temperature:-40°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:122 x 64 x 27 mm

Weight:Approx. 250 g

    Integrating advanced digital output technology, the Triconex 3401 Digital Output Module is engineered to deliver unparalleled performance in demanding industrial settings.

    Featuring an operational voltage range of 15 to 30 VDC and a maximum output voltage of 33 VDC, this module ensures robust operation under various conditions.

    With a self-limiting switching current capability of up to 4.8 A, it efficiently manages power distribution, enhancing system stability and reliability.

    Equipped with precise loop-back threshold detection, the module accurately responds to critical field alarms, safeguarding against potential failures.

    Manufactured by Triconex, a leading provider in industrial automation, this module benefits from extensive experience and cutting-edge technology, ensuring compatibility with a wide array of control systems.
