Description

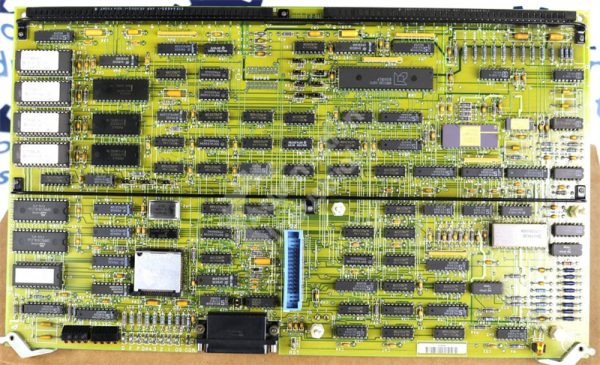

The GE DS3800HFPG1D1D is a drive control board with modular connectors, a design that allows it to be quickly and easily connected to the drive. Here are some of the features of this control board:
Modular connector: The DS3800HFPG1D1D is equipped with a modular connector for attaching to the driver, and a retaining rod for attaching the board to the driver.
Microprocessor and EPROM modules: The control board is equipped with a microprocessor and multiple erasable programmable read-only memory (EPROM) modules.
Connector configuration: There is a 34-pin connector on the board that can be accessed from the front of the board, and a 40-pin connector for further connection and expansion.
Interface logic: Another component on the board is the transistor-to-transistor logic (TTL) device, which acts as the interface logic between integrated circuits.
Heat dissipation considerations: Microprocessors generate heat when handled, so installers can take steps to prevent heat buildup in the microprocessor, such as ensuring that ventilation holes allow free flow of air, and installing in a location with a supply of cold air.
Supported Serial communication: The control board supports embedded serial communication, including RS-232 (COM1) and RS-485 (COM2), as well as Modbus RTU Slave, SNP Slave, Serial I/O and other serial protocols.
Rated power requirements: 1.0A for +5 VDC, up to 1.5A if USB is fully loaded.
The DS3800HFPG1D1D control board is designed with a focus on modularity and flexibility for industrial automation applications that require quick installation and easy maintenance.
