Description

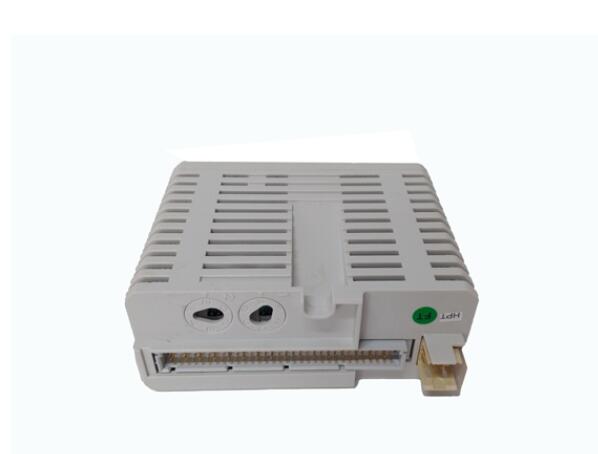

AO845 DTM supports connecting HART DTM to its channels, the following are details and summaries about this:
Connectivity:
The AO845 DTM supports the connection of HART DTM (Digital Transmission Module) to its channel.
This means that HART DTM can be connected to any channel of the AO845 DTM for the transmission of HART protocol digital signals.
Number of channels:
The AO845 DTM has eight channels that reflect its hardware channels.
This means that up to eight HART TDMS can be connected per AO845 DTM.
Protocol support:
AO845 DTM only supports HART DTM, not DTM operating with other protocols.
HART protocol is a digital communication protocol that allows the transmission of digital signals over 4-20mA analog signal lines, enabling the monitoring and control of field equipment.
Note:
Only one HART DTM can be connected on each channel to ensure stable and reliable communication.
When connecting the HART DTM, ensure that the correct wiring methods are followed, including the proper connection of 4-20mA analog signal cables, HART communication cables, power cables, and ground cables.
