Description

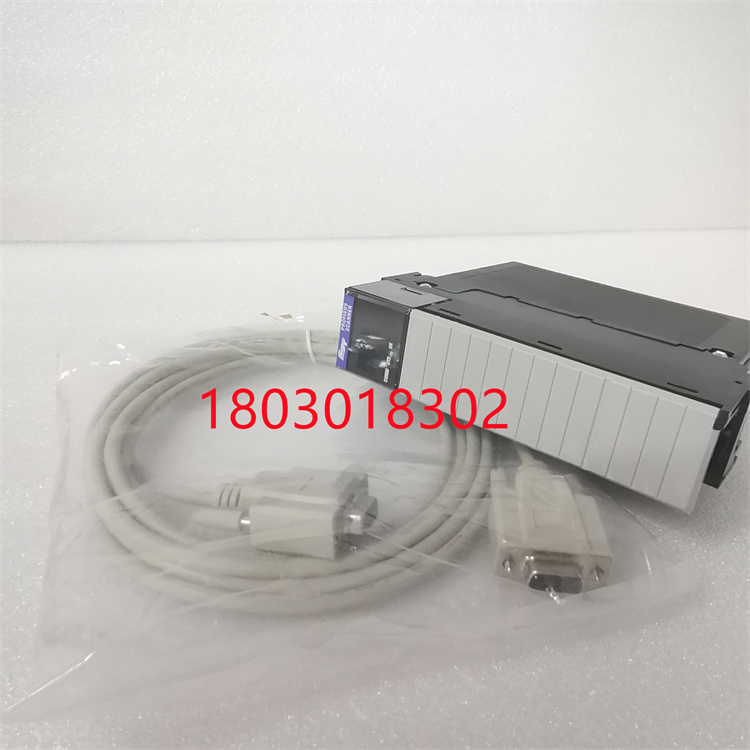

The SST-PB3-CLX-RLL communication module is a slot-type communication module for the Rockwell ControlLogix platform, which is mainly used to connect to the PROFIBUS network. Here are some of the key features and functions of the module:
Support for PROFIBUS-DP master and slave modes: The module can exchange data with other compatible devices as the master or slave of a PROFIBUS-DP network.
Design and manufacture: Designed and manufactured by Molex to ensure its quality and performance.

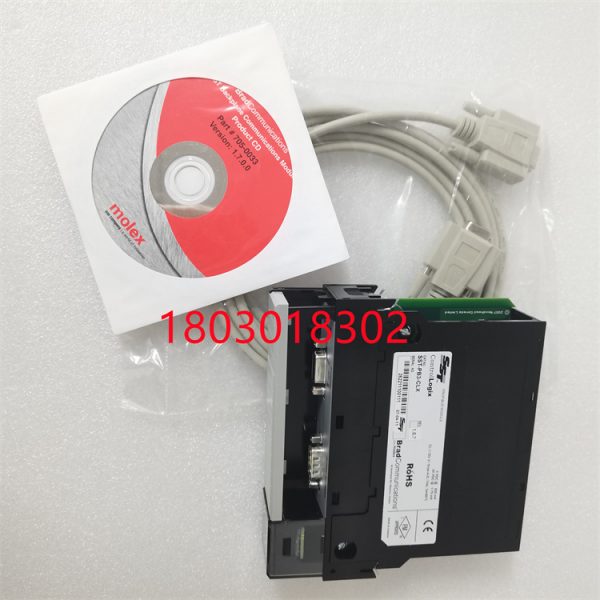

Hardware configuration: The module is equipped with a 9-pin PROFIBUS D-sub female head for communication, and has an LCD panel and 3 LED indicators for communication, system and normal status of the module.
Integration and configuration: The module comes with an “Additional configuration file” (AOP) that supports integration using RSLogix 5000 software, simplifying the configuration process.
Data transfer mode: Two data transfer modes are supported: direct mode allows mapping PROFIBUS data in I/O processor images, and paging mode allows access to PROFIBUS data from user-defined data Spaces.
Operating temperature range: The module can operate stably in the temperature range of 0 to 60 degrees Celsius, suitable for a variety of environmental conditions.
Remote configuration and Monitoring: With the Remote Link Library (RLL) function, you can remotely monitor or download changes to the PROFIBUS configuration.
Compatibility: The module is compatible with multiple Rockwell Automation environments and supports a variety of engineering tools, including configuration consoles and test diagnostics tools.
Applications: The SST-PB3-CLX-RLL module is suitable for various industrial automation fields, such as manufacturing, power industry, oil and gas industry, transportation industry, etc.
SST-PB3-CLX-RLL communication module may encounter some problems in practical applications, the following are some common problems and their solutions:
Communication failure:
Description of the problem: The module cannot communicate with other devices on the PROFIBUS network.
Solution: Check that the PROFIBUS cable is securely connected and that the cable is not damaged. Configure and program the module using the SST PROFIBUS configuration tool to ensure that the communication parameters are set correctly.
Module configuration problems:
Description of the problem: The module cannot be correctly configured or identified.
Solution: Use RSLogix 5000 software and SST Configuration Tool for module configuration. Ensure that the module’s “Additional configuration file” (AOP) is loaded correctly so that the module can integrate seamlessly with the ControlLogix system.
Firmware version issues:
Description: The firmware version of the module is too old, resulting in limited functions or instability.
Solution: Update the module firmware. You can refer to the instructions on pages P128-129 of the user manual to download the latest firmware and RUN the run command to load the new firmware version. The updated firmware can be confirmed by observing the screen display.
Data transfer mode problem:
Description of the problem: The data transfer mode is incorrectly set. As a result, data cannot be mapped or accessed correctly.
Solution: Set the correct data transfer mode in the RSLogix 5000 software. The SST-PB3-CLX-RLL module supports both direct and paging modes, ensuring that the right mode is selected for your actual needs.
If the module status indicator is abnormal:
Description of the problem: The LED indicator of the module is abnormal, for example, the communication, system, or normal status indicator is off or blinking.
Solution: Check the power connection and communication line of the module. Use the SST Configuration Tool to check for error codes or status information. If necessary, refer to the module user manual for troubleshooting.
Environmental adaptability issues:
Problem Description: The module does not work stably under extreme temperature or humidity conditions.
Solution: Ensure that the module operates within its specified temperature and humidity range (0 to 60 degrees Celsius, 5% to 95% relative humidity). If you need to use in more extreme environments, you can consider using a form coated version of the module to provide additional protection.
Remote monitoring and configuration issues:
Description of the problem: The module cannot be remotely monitored or configured using RSLinx software.
Solution: Make sure that the RSLinx software version is compatible with the module and that the network connection is working. Use the Remote Link Library (RLL) feature to allow changes to the PROFIBUS configuration to be remotely monitored or downloaded over Ethernet.
The above solution can effectively solve the problems that may be encountered in the practical application of the SST-PB3-CLX-RLL communication module, and ensure the stable operation and efficient communication of the system.
