Description

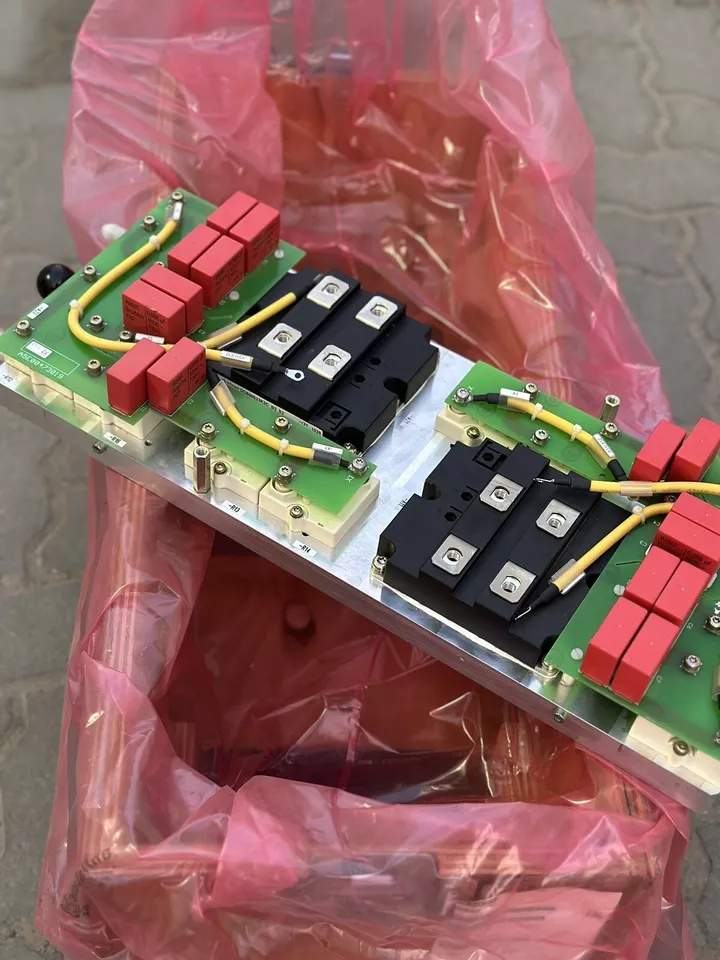

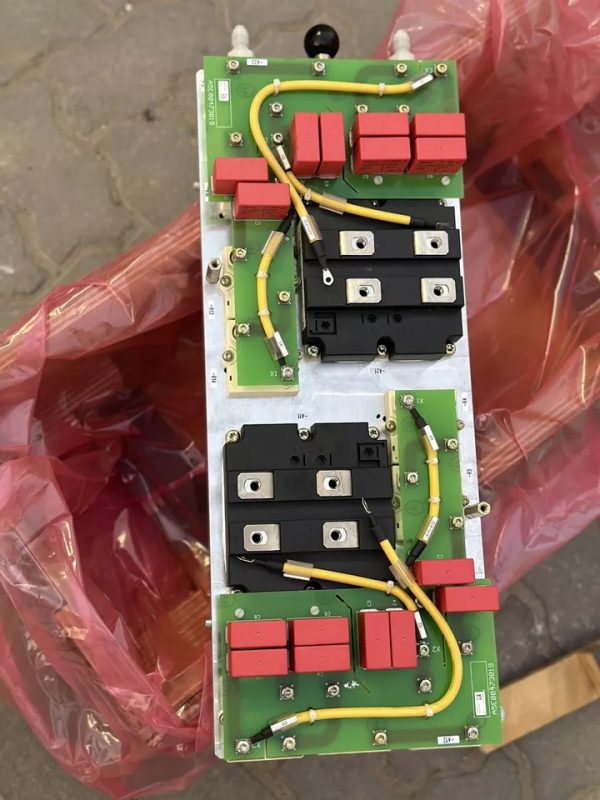

Siemens 6SL3912-5EP38-0AA0 Neutral Point Diode Power Card DD800 GM150 IGBT-MP:
1、 Product Overview
Siemens 6SL3912-5EP38-0AA0 is a neutral point diode power card belonging to Siemens’ IGBT module series, specifically designed for use in GM150/SM150 series high-voltage frequency converters. This power card adopts advanced IGBT (Insulated Gate Bipolar Transistor) technology, which has excellent electrical performance and stability, and can meet the requirements of various high dynamic response and energy feedback functions for single or multi machine transmission systems.
2、 Main features
Widely applicable: This power card is suitable for multiple fields such as chemical, petroleum, geological and mining, energy, electronics, etc., and can meet the needs of different industries for high-voltage frequency converters.
High performance IGBT technology: By adopting IGBT technology, power cards have higher efficiency and lower losses, while improving system stability and reliability.
High dynamic response: able to quickly respond to system changes, ensuring the stability and accuracy of the transmission system.
Energy feedback function: It can feedback the energy generated during the braking process to the power grid, improving energy utilization efficiency.
3、 Technical specifications
Regarding the technical specifications of 6SL3912-5EP38-0AA0, although the specific parameters may vary due to product batches and updates, they usually include the following aspects:
Rated voltage: may be suitable for a voltage range of 3.3kV to 4.16kV (please refer to the product manual or consult the supplier for details).
Rated current: may reach 1000A or higher (specific value to be determined according to specific model).
Cooling method: Water cooling heat dissipation may be used to ensure stable operation of the power card under high loads.
Size and weight: The product specification is usually 80cm * 100 * 60 (specific size may vary depending on the product), and the weight may also vary depending on the specific configuration.
4、 Precautions
Installation and commissioning: During the installation and commissioning process, it is necessary to strictly follow Siemens’ operating manual and guidelines to ensure the correct installation and stable operation of the power card.
Maintenance and upkeep: Regularly maintain and upkeep the power card, check its electrical connections and cooling system for proper functioning, and promptly identify and resolve any issues.
Usage environment: The power card should be installed in a dry, ventilated, and non corrosive gas environment to ensure its long-term stable operation.
5
The Siemens 6SL3912-5EP38-0AA0 neutral point diode power card DD800 GM150 IGBT-MP is a high-performance and highly reliable product that can meet various transmission system requirements for high dynamic response and energy feedback functions. In the selection and use process, full consideration should be given to its technical specifications, application areas, and installation and commissioning requirements to ensure the stable operation and efficient energy utilization of the system.
