SIEMENS 6GK1561-4AA02 – Communications processor CP 5614 A3 for Enhanced Industrial Automation

The SIEMENS CP 5614 A3 Communications Processor, model 6GK1561-4AA02, is a high-performance PCI-card designed for seamless integration into industrial control systems, featuring 32-bit architecture at 33/66MHz clock speed, supporting both 3.3V and 5V voltage levels. It is equipped with an ASIC ERTEC 400 for connectivity to PROFINET IO through a 4-port real-time switch (RJ45), enhancing efficiency and reliability in network communications.

Description

Processor Architecture:32-bit

Clock Speed:33/66MHz

Voltage Compatibility:3.3V, 5V

Network Interface:PROFINET IO

Port Configuration:4-port real-time switch (RJ45)

Chipset:ASIC ERTEC 400

    The SIEMENS 6GK1561-4AA02 Communication Processor CP 5614 A3 is a critical component for enhancing the efficiency and reliability of industrial automation networks. Its compact design ensures seamless integration into existing systems, making it an ideal choice for upgrading or expanding control systems.

    With its 32-bit processing capability at a clock speed of 33/66MHz, this processor offers robust performance, ensuring fast and accurate data processing in real-time applications. The inclusion of a 12MB memory allows for extensive storage of program code and data, enhancing system capabilities.

    Featuring a 4-port real-time switch via RJ45 connector, the CP 5614 A3 facilitates efficient communication between different nodes in a network, improving overall system performance and reliability. This is particularly advantageous in environments requiring high-speed, low-latency data exchange.

    The processor comes equipped with an ASIC ERTEC 400, which is specifically designed for compatibility with Profinet IO networks, providing seamless integration and enhanced interoperability with other Profinet devices. This feature ensures that the processor can be easily connected to a wide range of industrial equipment, streamlining the setup process.

    Included with the package is a development kit (DK-16XX PN IO), which simplifies the configuration and programming process. This tool significantly reduces development time and effort, allowing engineers to focus on optimizing their systems rather than navigating complex setup procedures.

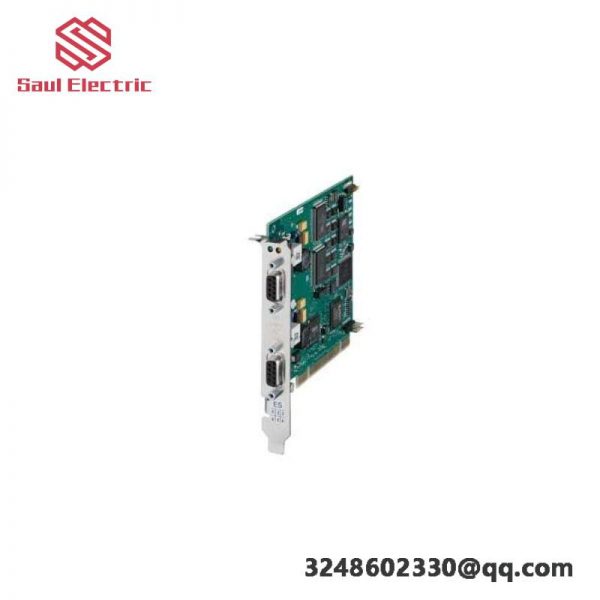

SIEMENS 6GK1561-4AA02 Communications processor CP 5614 A3
