Description
Extended Product Type:Positional Switch
Product ID:3SF1324-1SD21-1BA1
Siemens Type Designation:ASISAFE Integrated Position Switch
Locking Force:1300 N
Directions of Approaches:5
Enclosure Material:Plastic
Connector Type:M12
Channel 1:Actuator, NC
Channel 2:Magnet, NC
Spring-Locked Auxiliary Release:Front
Magnet Voltage:24 V DC/AC
Monitoring:Actuator, 2 NC/1 NO; Magnet, 2 NC/1 NO
Matching Separate Actuator:3SE5000-0AV0 (Must be Ordered Separately)
Product Lifecycle:PM300: Active Product
Net Weight:0.515 kg
Product Group:3758
Product Class:C: Products Manufactured / Produced to Order
Group Code:R220

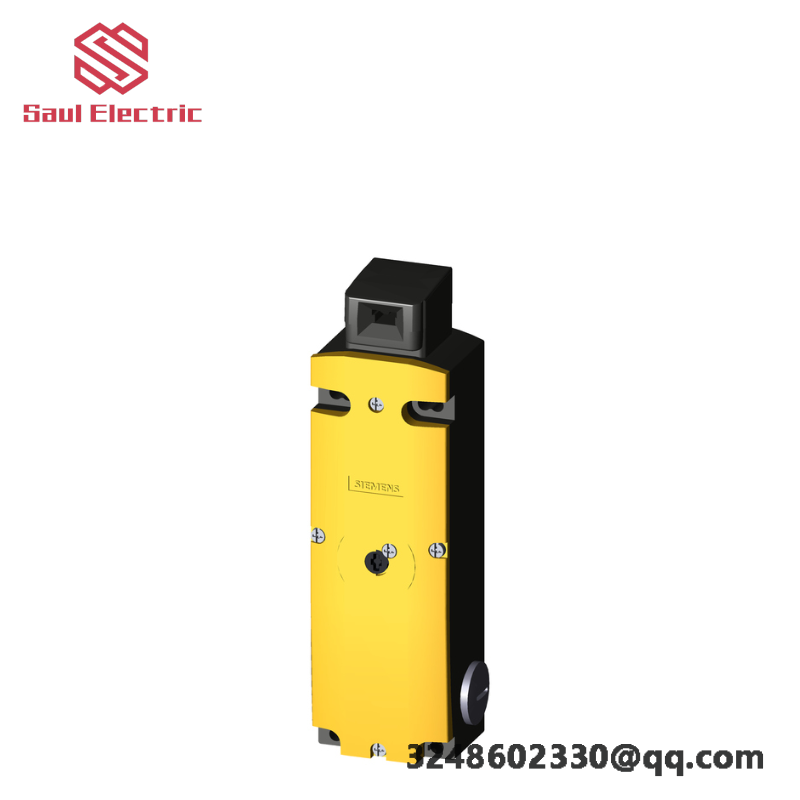

The SIEMENS 3SF1324-1SD21-1BA1 Positional Switch with ASISAFE Technology is designed for precise and reliable position sensing in demanding industrial environments. Its robust construction ensures durability and longevity, making it an ideal choice for applications requiring high accuracy and safety standards.
Featuring a tumbler locking mechanism with a force of 1300 N, this switch offers secure positioning with five directional approaches. The plastic enclosure and M12 connector provide a compact yet rugged design suitable for various installation scenarios.
Integrated ASISAFE technology enhances the switch’s functionality by enabling seamless communication between actuator and magnet channels, ensuring accurate monitoring and control. This makes it particularly suitable for applications where precise position feedback is crucial for safety and operational efficiency.
With a front auxiliary release and support for monitoring actuator and magnet voltages at 24 V DC/AC, this switch facilitates easy integration into existing control systems. The 3SE5000-0AV0 actuator, sold separately, complements its performance, offering a comprehensive solution for position sensing tasks.
Manufactured to order (Product Class C), this switch is part of Siemens’ extensive range of automation components, designed to meet the diverse needs of modern industrial automation systems. Its active product lifecycle (PM300: Active) guarantees ongoing support and availability, ensuring smooth operation and maintenance.
