Description
The SDCS-PIN-46-COAT excitation control board, servo board, and related industrial control systems and equipment play an important role in the field of industrial automation.
1、 Product Overview

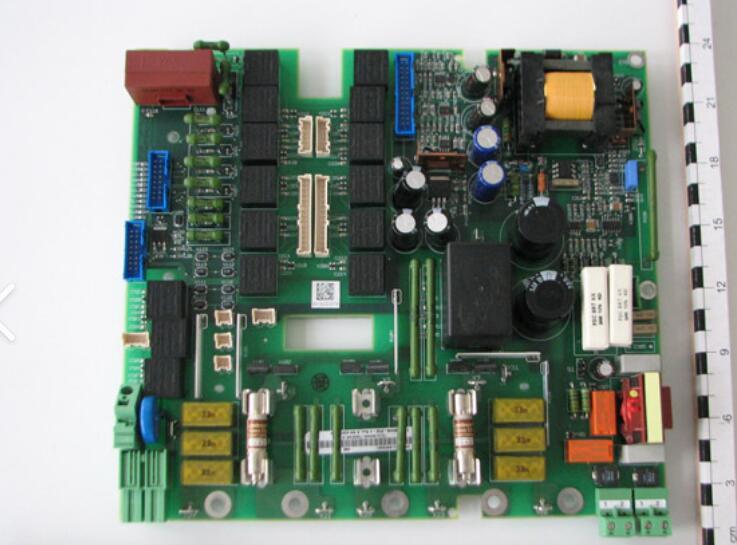

SDCS-PIN-46-COAT is an excitation control board produced by ABB, which is an important component of ABB’s excitation system. This control board is used in the power system to control and regulate the excitation system of generators or synchronous motors, ensuring the stable operation of the power system.
2、 Working principle
The main working principle of an excitation controller involves controlling and regulating the excitation system of a generator or synchronous motor. It detects the output voltage and current of the generator through sensors, converts these signals into electrical signals, and sends them to the controller. The controller calculates the required excitation current based on preset parameters and control strategies, and sends this signal to the excitation system. The excitation system usually includes an excitation transformer and an excitation power supply. The excitation transformer converts the low voltage signal of the controller into a high voltage signal, and then supplies the excitation power supply. The excitation power supply converts high voltage signals into direct current and provides it to the excitation coil of the generator, thereby generating a constant magnetic field. This magnetic field changes with the excitation current, which in turn affects the output voltage and current of the generator.
3、 Product Features
Precise control: By precisely controlling the excitation current, the output voltage and current of the generator can be optimized, improving the stability and efficiency of the power system.
Stable performance: The SDCS-PIN-46-COAT excitation control board has stable internal variables, which can ensure the stable operation of the generator or synchronous motor.
Widely applicable: This control board is widely used in various power systems that require precise control of excitation systems, such as power plants, hydropower stations, nuclear power plants, etc.
4、 Technical specifications
The technical specifications of the SDCS-PIN-46-COAT excitation control board may vary depending on the production batch and specific application scenario, but generally speaking, the control board has the following basic specifications:
Brand: ABB
Model: SDCS-PIN-46-COAT
Voltage: Typically 24V
Current: may be within the range of 100~400A
Origin: Switzerland
