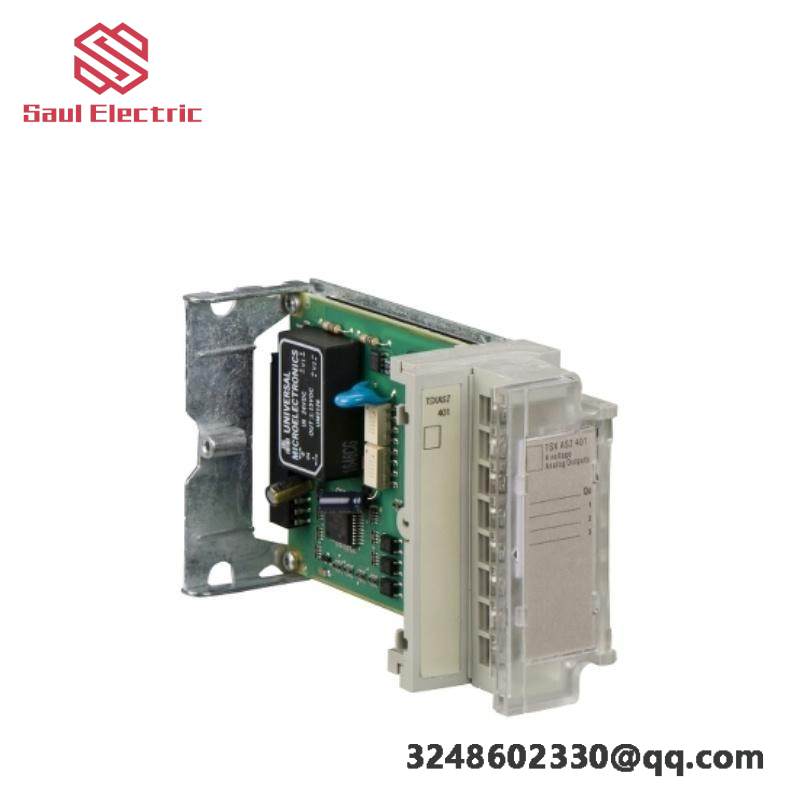

Schneider TSXASZ401 4-Channel Analog Output Module

Description

Product Type:Module

Product ID:TSXASZ401

Manufacturer Type Designation:Schneider

Specification Range:Modicon TSX Micro automation platform

Component Type:Analog output module

Number of Channels:4

Analog Output Type:0…10 V, +/- 10 V

Current Consumption:90 mA

Power Supply Voltage:DC 5 V

Product Weight:0.44 lb (US) / 0.2 kg

Ambient Temperature:Maximum of +50°C

Overall Dimensions:Width 239mm, Length 90mm, Depth 194mm

Control Panel:Yes

Drive Type:Variable Speed

Communication Type:FC Protocol, Modbus RTU

Filter:Included

Function:Motor Control

Special Features:Excellent Reliability, Integrated Braking Chopper, User Friendly

Standards Met:ISO 14001, RoHS, WEEE

IP Rating:IP20

Mounting Type:Panel Mount

    The Schneider TSXASZ401 is a high-performance, 4-channel analog output module designed for industrial control applications requiring precision and reliability. Its modular design ensures seamless integration into existing control systems, offering unrivaled scalability and flexibility.

    Each channel supports a wide voltage range, from 0…10 V and +/- 10 V, enabling versatile application across various industries. The low current consumption of 90 mA ensures efficient power usage, making it an economical choice for long-term operation.

    With an ambient temperature maximum of +50°C, this module operates reliably in demanding environments, ensuring continuous performance even under harsh conditions. Its compact size (239mm x 90mm x 194mm) allows for efficient space utilization on control panels.

    Equipped with a user-friendly control panel and field bus communication capabilities through FC Protocol and Modbus RTU, the Schneider TSXASZ401 simplifies integration with other systems and devices, enhancing system interoperability and efficiency.

    This module is built to meet stringent international standards, including ISO 14001 for environmental management, RoHS for hazardous substance restrictions, and WEEE for waste electrical and electronic equipment. Its IP20 rating ensures protection against dust and splashes, further enhancing its robustness in industrial settings.
