Description
Product Type:Discrete Output Module
Module ID:140DDO35300
Modicon Type Designation:Quantum
Range of Product:Modicon Quantum Automation Platform
Component Type:Low Voltage DC
Discrete Output Number:32
Groups of Channels:4 groups of 8
Discrete Output Voltage:24 V DC
Power Dissipation:1.75 W + (0.4 V x total module load current)
Bus Current Requirement:330 mA
Product Weight:0.99 lb (US) / 0.45 kg
Voltage Limits:19.2…30 V
Input Impedance:2500 Ohm
Maximum Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V
Absolute Maximum Input:30 V continuous / 56 V during 1.3 ms decaying pulse

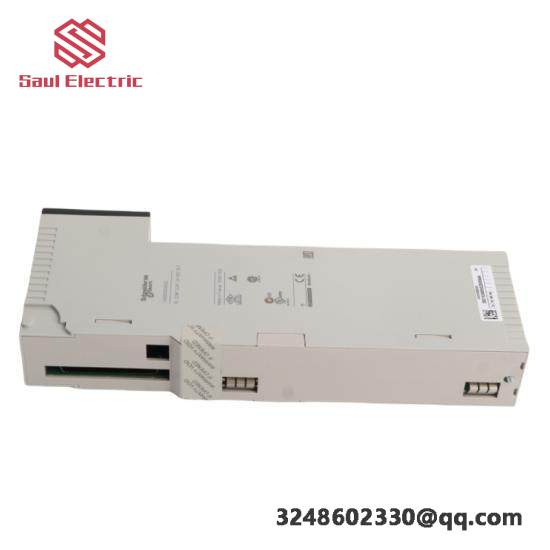

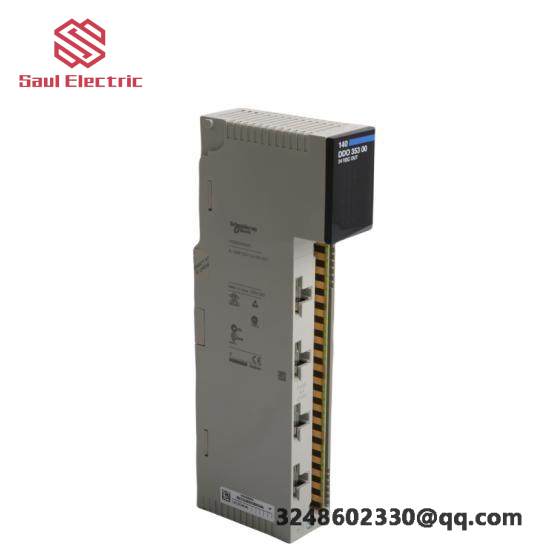

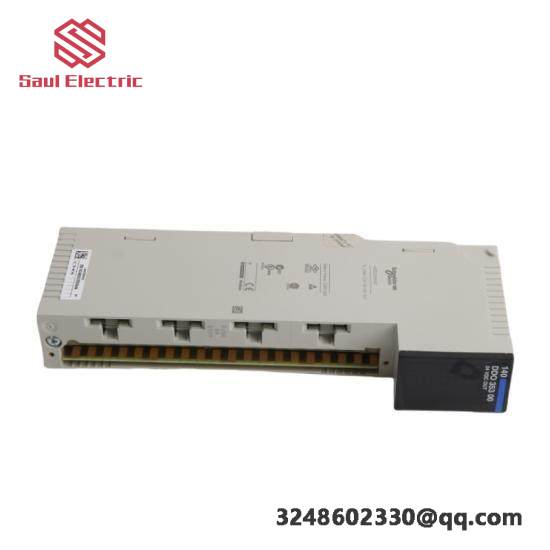

The Schneider Modicon Quantum 140DDO35300 Discrete Output Module is a key component for enhancing the efficiency and reliability of industrial automation processes. With its robust design and high output capacity, this module ensures precise control over actuators and devices, optimizing operational performance.
Engineered with precision, this module features a comprehensive specification range, including 32 discrete outputs grouped into four sets of eight. Each channel is meticulously designed to withstand varying electrical loads, ensuring consistent operation under diverse conditions.
Featuring a discrete output voltage of 24 V DC, the module is compatible with a wide range of industrial devices, making it a versatile choice for various applications. Its low power dissipation ensures efficient energy use, reducing operational costs without compromising performance.
The Schneider Modicon Quantum 140DDO35300 Discrete Output Module boasts an impressive product weight of 0.99 lb (US), making it lightweight yet durable. This design allows for easy installation and integration within existing systems, facilitating seamless upgrades and maintenance operations.
With its adherence to international safety standards and Schneider’s commitment to quality, the 140DDO35300 module offers unparalleled reliability and longevity. It is specifically tailored for use in demanding industrial environments, where precision and dependability are paramount.
