Schneider Electric 140ACO13000 analog output module 140CPS11100

Description

Schneider Electric 140ACO13000 analog output module 140CPS11100

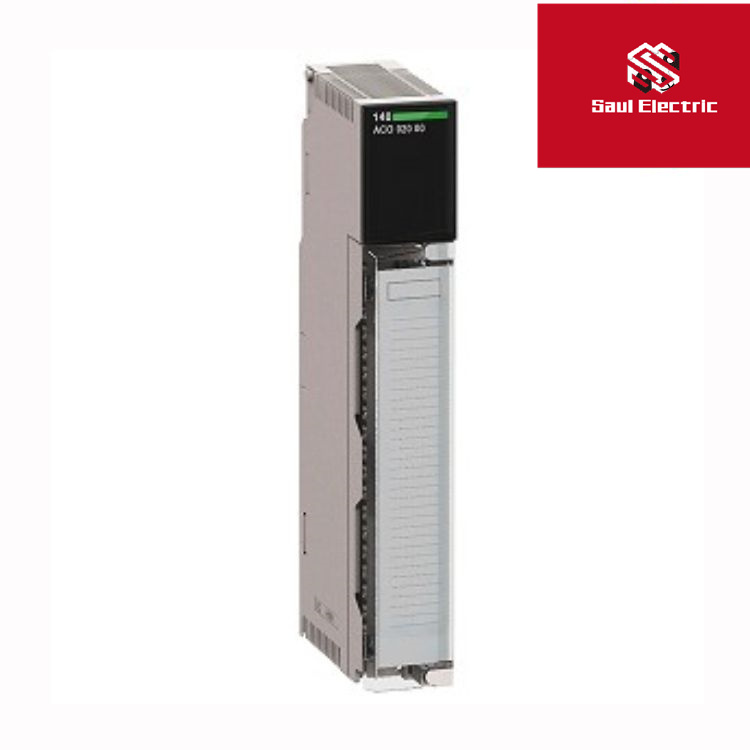

Schneider Electric 140ACO13000 Analog Output Module Modicon 140ACO13000 is an analog output module manufactured by Schneider Electric. It is part of the Modicon Quantum ExoStruxure family of controls for discrete and analog I/O modules. It can be configured with UnityPro software. The device has eight analog output channels for controlling and monitoring current. It’s in 4… 20 mA, 0… 20 mA and 0… Perform this operation in the 25 mA loop.

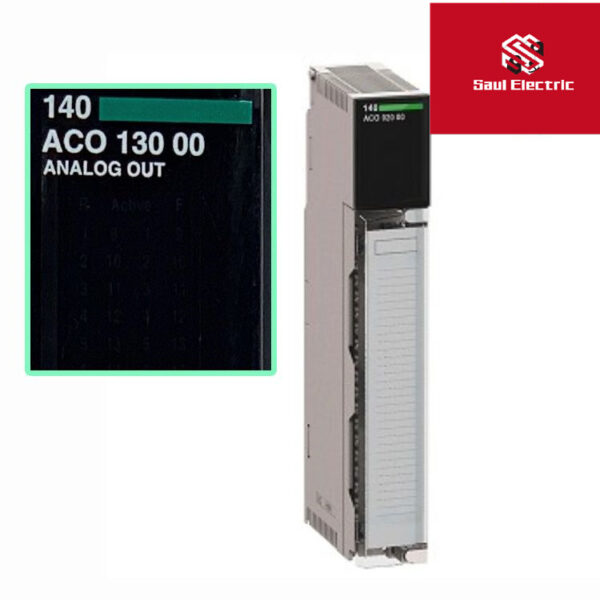

The Schneider Electric 140ACO13000 Modicon module has six identifiable features. On the top front of the module, you can see the color-coded module number as well as a description. Beneath the number is the LED with 8 different indicators. Enclosed in the removable door with a customer identification label is the fuse cutout area. and the field wiring terminal strip.

The 140ACO13000 LED to alert you green when the Bus communication is present. The LED alerts RED when there is an error external to the module detected. 1…8 are green when the module outputs are switched on, and red when there is an indication of a channel having a broken wire.

The input range on this module is 0…25 mA 0…20 mA 4…20 mA. The resolution is 0…25 mA: 0…25,000 points 0…20 mA: 0…20,000 points 4…20 mA: 0…16,000 points (default) 4…20 mA: 0…4095 points. There is no isolation between channels. and it has 8 output words. The Bus current required is 550 mA. It has a max dissipated power of 5.0 W. You can modify the configuration online. It carries UL 508, CSA 22.2-142, e, FM Class 1 Div. 2, ATEX Zone 2/22 approvals.

There are two main types of memory: RAM for read/write operations, and ROM, PROM, EPROM, and EEPROM for read-only memory. In PLC, memory is mainly used to store system program, user program and working data.
System program is written by the manufacturer of PLC, and PLC hardware composition, complete system diagnosis, command interpretation, function subroutine call management, logical operation, communication and a variety of parameter Settings and other functions, provide a platform for PLC operation. The system program is related to the performance of PLC, and will not change in the process of PLC use, so it is directly solidified by the manufacturer in ROM, PROM or EPROM, the user can not access and modify.
