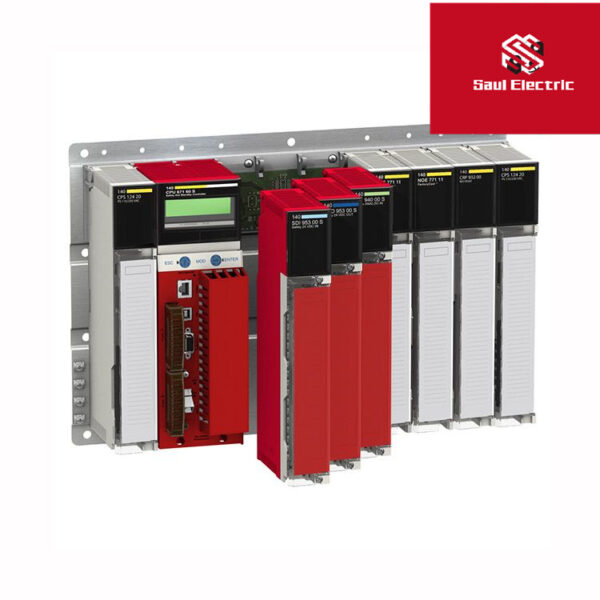

SCHNEIDER 140DDO84300 Discrete Output Module Modicon Quantum-16 O-10… 60 V DC
| range of product | Modicon Quantum automation platform |
|---|---|
| product or component type | Dc discrete output module |
| discrete output number | 16 |
| group of channels | 2 groups of 8 |
|---|---|
| discrete output logic | Positive logic (source) |
| addressing requirement | 1 output word |
| discrete output voltage | 10…60 V DC |
| output voltage limits | 10.2…72 V |
| absolute maximum output | 72 V permanent |
| maximum voltage drop | <1 V 2 A |
| maximum load current | 12 A per module 6 A per group |
| surge current | 7.5 A for 50 s |
| response time | <= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0 |
| maximum leakage current | 1 mA 60 V |
| load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
| associated fuse rating | 2 A each point 8 A per group |
| isolation between channels and bus | 2500 Vrms DC for 1 minute |
| isolation between group | 700 Vrms DC for 1 minute |
| protection type | Internal output protection by 8 A fuse per group |
| power dissipation | 1 W + (1 V x total module load current) |
| Marking | CE |
| local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| bus current requirement | 160 mA |
| module format | Standard |
| Net weight | 0.45 kg |
| product certifications | GOST RMRS FM Class 1 Division 2 C-Tick |
|---|---|
| Standards | CSA C22.2 No 142 UL 508 |
| resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.73 cm |
| Package 1 Width | 16.33 cm |
| Package 1 Length | 30.91 cm |
| Package 1 Weight | 452.6 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.77 kg |
