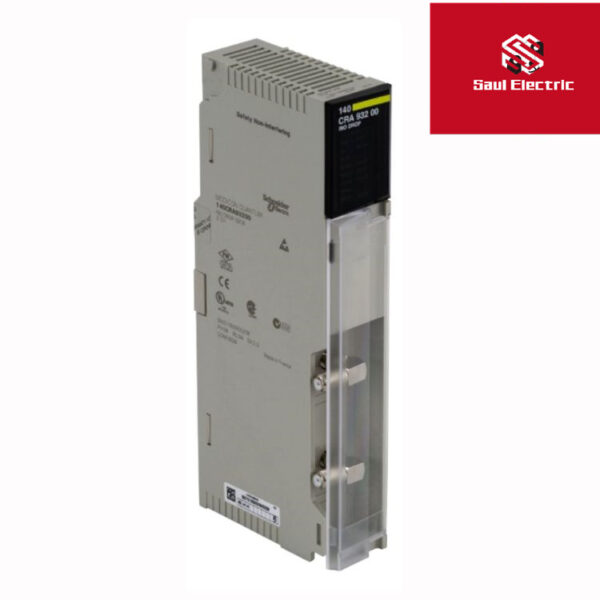

Schneider 140CRA93200 MODICON Module 140CRA31200
SCHNEIDER 140CRA93200 MODICON Module 140CRA93200 is a remote I/O head dual-channel module in the Modicon Quantum family. It is designed to be installed on the same backplane as the control CPU module. This module transmits data bidirectional between the two modules, with the PCU and RIO sub-station modules located in separate backplanes. To interconnect this RIO head module, a coaxial cable network is used in conjunction with at least one other RIO sub-station module.
RIO drop adaptor module Modicon Quantum – 2 connectors with redundant cable
| range of product | Modicon Quantum automation platform |
|---|---|
| product or component type | RIO drop adaptor module |
| product compatibility | Quantum |
|---|---|
| maximum number of I/O expansion module | 27 |
| type of cable | 75 Ohm coaxial cable |
| transmission rate | 1544 Mbit/s |
| dynamic range | 35 dB |
| isolation voltage | 500 V DC coaxial center and ground |
| electrical connection | 2 female connectors F, elbowed with redundant cable |
| diagnostics startup | Power up and runtime RAM address/data Executive checksum |
| power dissipation in W | 3.8 W 2 channels |
