SCHNEIDER 140CPU67160 CPU module VT3006S35R1

Description

SCHNEIDER 140CPU67160 CPU module VT3006S35R1

SCHNEIDER Modicon Quantum Automation Platform 140CPU67160 Unity Processor No Arithmetic Coprocessor Modicon Quantum-1024 KB -266 MHz

(1) The maximum number of discrete and simulated I/ OS depends on the topology used (remote I/O, distributed I/O, etc.). For more information, please visit our website www.schneider-electric.com. (2) Profibus DP module provided by our partner Prosoft (Collaborative Automation Partner Program). (3) Modbus Plus module: Among the 6 modules, only the first 2 modules have full functions. (4) Max. Distance between two hot spare cpus: A maximum of 4 km

140CPU53414AC 140CPU53414B 140CPU53414BC 140CPU53414C 140CPU53414U

140CPU53414UC 140CPU65150 140CPU65150C 140CPU65160 140CPU65160C

140CPU65160S 140CPU65260 140CPU65260C 140CPU65860 140CPU65860C

140CPU67060 140CPU67060C 140CPU67160 140CPU67160C 140CPU67160S

140CPU67260 140CPU67260C 140CPU67261 140CPU67261C 140CPU67861

140CPU67861C

Additional description
Overview of Schneider Electric 140CPU67160

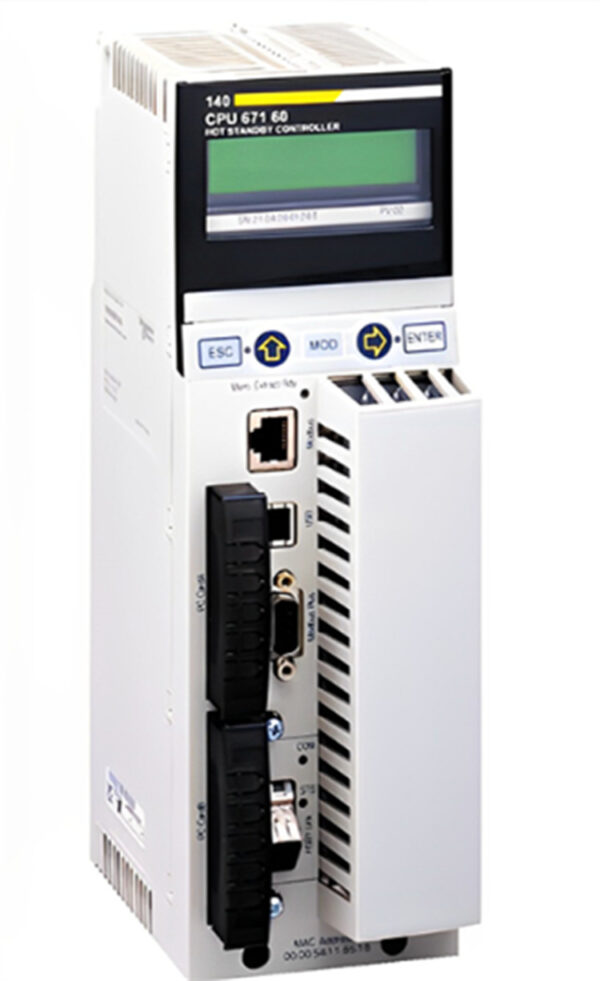

The Modicon 140CPU67160 is a quantum Hot Standby CPU (HSBY) manufactured by Schneider Electric. This unity hot spare processor is from the Modicon Quantum automation platform family. It is equipped with multi-mode Ethernet connectivity. It has a clock frequency of 266 MHz and two local racks. Dedicated I/O includes counters, precise timestamps, high-speed interrupt outputs, and serial links.
characteristic
The Modicon 140CPU67160 has several features. It has an LCD monitor covered by a lens cap. Behind the lens cap are key switches, batteries, and reset buttons. The CPU comes standard with a 2-line 16-character LCD. It also has variable backlight and contrast. The keyboard has five keys that map to hardware addresses. There are two arrow keys, each containing an LED. One of the module’s lifesaving features is automatic backlighting. The keyboard driver detects a key and automatically turns on the backlight. It will automatically shut down after five minutes. If an error is detected, the backlight stays on. This unit has a Modbus port and a USB port, as well as PCMCIA slots. Has Ethernet communication indicators and an Ethernet port for HSBY CPUs for fiber communication). It has a battery and a reset button.
The Schneider Electric 140CPU67160 is manufactured to be mounted on a backplane.
advantage
140CPU67160 has a variety of connection options, including one USB port, two distributed as interfaces, four remote AS interfaces, six local Modbus Plus connections, six local Profibus DP connections, one Modbus connector, and six local Ethernet TCP/IP connections. It features six optional modules including Ethernet, Modbus, Modbus Plus, Profibus, DP, and Sy/Max. Through a series of modules, the processor is highly adaptable and flexible and can be used to meet your requirements and specifications.
Another component of this processor is its memory capacity. It has 1024 kB and 512 kB of internal RAM dedicated to data. In addition, the 140CPU67160 has an expendable file storage capacity of 8 MB via the PCMCIA card. It also has 7168 kB expandable program storage capacity with PCMCIA card. When you need to store multiple files and programs, this processor can protect your data and information security. The processor has a handy key switch that allows you to easily turn storage on and off.
How do I use the 140CPU67160
The key switch is an additional security feature with memory protection. The key switch has two positions: lock and unlock. When it is in the unlocked position, the operator can use or modify all system menu operation functions and variable module parameters through the LCD and keyboard. When the key switch is unlocked, the memory protection is off. When the key switch is in the locked position, you cannot access menu actions and the module parameters are in read-only mode. When the key switch is locked, memory protection is enabled.
Schneider Electric 140CPU67160 comes with a two-year warranty.
