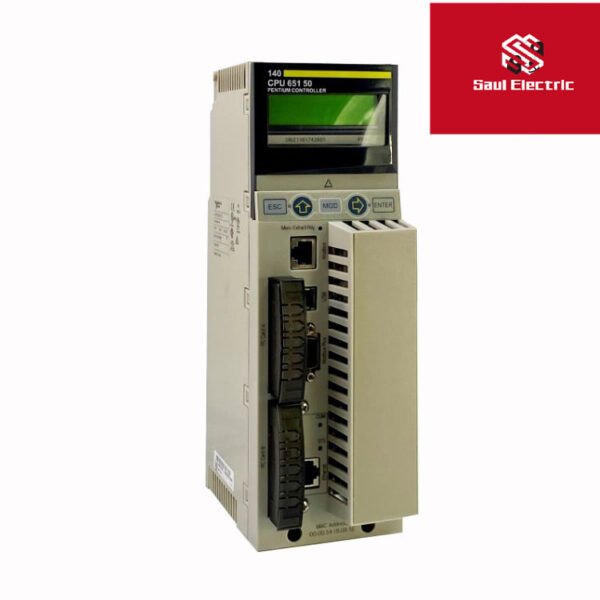

Schneider 140CPU65150 MODICON Quantum Unity Processor
The 140CPU65150 is the Modecon Quantum Series of Unity processors from Schneider Electric. It is one of the newer models in the processor module family. It combines the standard functions of a PLC with the diagnostic possibilities of a web server. It uses RJ-45 connections for communication. The module is housed in the double-width standard Quantum housing, which requires two consecutive slots in the Quantum rack.
| Brand/Manufacturer | Schneider/Modicon |
| Model | 140CPU65150 |
| Part No | 140-CPU-651-50 |
| Place of Origin | FRANCE |
| Product Name | CPU Module |
| Description | Unity Hot Standby processor with multimode Ethernet |
| Colour | White |
| System overhead | 1 ms – master task0.2 ms – fast task |
| Bus current requirement | 2160 mA |
| Memory description | Expandable 8 MB – file storage with PCMCIA card
Expandable 7168 kB – program with PCMCIA card Internal RAM 768 kB |
| Dimennsions | 8.9cm x 8.2cm x 14.4cm |
| Discrete I/O number | 8000 inputs, 8000 outputs – distributed – per network
31744 inputs, 31744 outputs – remote Unlimited (26 slots max) – local |
The 140CPU65150 has a data rate of 10/100 Mbps. For a medium, a user should use a shielded twisted pair cable. The module has a number of services, including standard web service, Modbus TCP messaging, I/O scanning services, global data, FDR client, SNMP management, and SMTP services (email). It is compatible only with the Unity Pro software.
The keypad is used to access the mapped hardware address. There are five keys on the keypad. Two of the keys are LED arrow keys.
The yellow indication LED is controlled by the coprocessor hardware and indicates Ethernet activity. The STS LED indicator is yellow and is controlled by the coprocessor software. It indicates several things. It is solid yellow when working normally. If it is not on, there is a possibility of a hardware problem. When the yellow STS light flashes, the number of flashes indicates the reason. One flash means the configuration is in progress; this is temporary. Two flashes mean an invalid MAC address, three flashes mean link not connected, four flashes indicate duplicate IP address, 5 flashes mean it is waiting for the IP address for the address server. Six flashes indicate an invalid IP address, and seven flashes indicate firmware incompatibility between PLC OS and Copro firmware.
