Description
PXIE-1095 is a high-performance PXI Express chassis produced by National Instruments (NI) in the United States. The following is a detailed introduction to the chassis:
1、 Product Overview

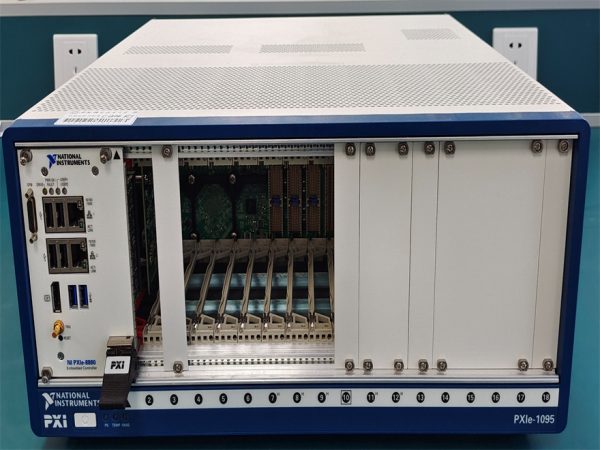

The PXIE-1095 is an 18 slot 3U PXI Express chassis designed to meet various high-performance testing and measurement application requirements. It integrates a high bandwidth backplane, powerful power and cooling capabilities, as well as optional timing and synchronous upgrade options, providing users with a flexible and powerful testing platform.
2、 Product Features
High bandwidth backplane: Each slot of the chassis is equipped with a high bandwidth backplane, with a maximum system bandwidth of up to 24 GB/s, ensuring high-speed and stable data transmission.
Powerful power and cooling functions: The chassis is equipped with two hot swappable power supplies, which improve the reliability and maintainability of the system. Meanwhile, each slot has a cooling capacity of up to 82 watts, ensuring stable operation under high loads.
Flexible slot configuration: PXIE-1095 offers 18 slots, including 5 hybrid slots and 11 PXI Express slots. In addition, there is also a PXI Express system timing slot for improving clock accuracy and implementing external clock and trigger routing.
Redundant hardware options: Through the design of two hot swappable power supplies, this chassis supports redundant hardware options, improving the system’s average time to repair (MTTR).
Optional timing and synchronization upgrade options: Users can choose to install a built-in constant temperature crystal oscillator (OCXO) to improve clock accuracy and achieve more precise synchronization and triggering functions.
3、 Application scenarios
The PXIE-1095 chassis is widely used in various fields that require high-performance testing and measurement applications, such as automation testing, semiconductor testing, aerospace testing, automotive electronics testing, etc. Its powerful performance and flexible slot configuration enable it to meet various complex testing requirements.
