Description

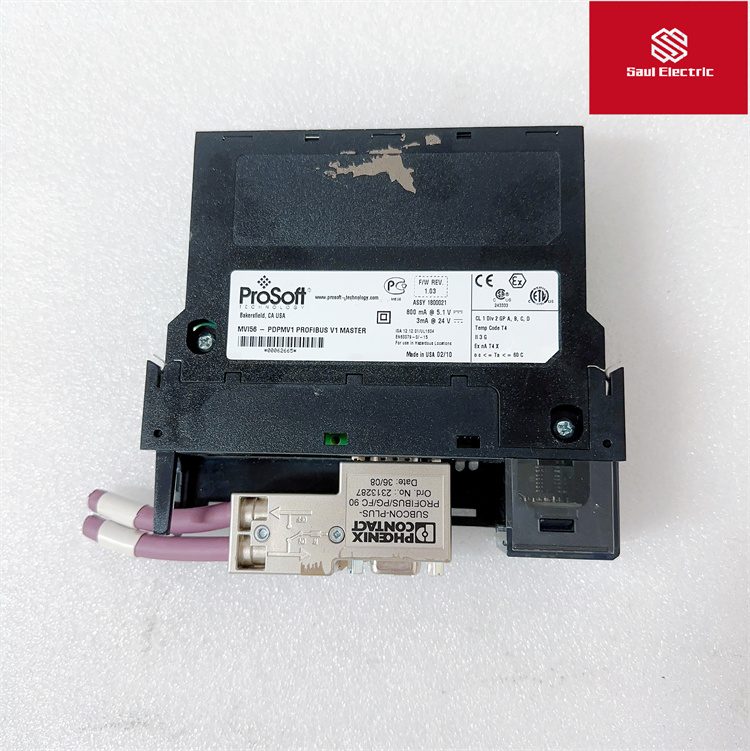

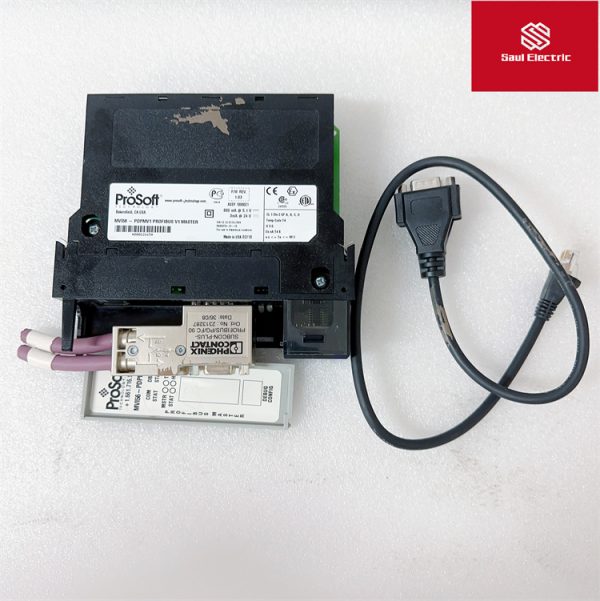

PROSOFT MVI56-PDPMV1 main network interface module allows ControlLogix processor
Characteristics and advantages
According to IEC 61158, this module supports the full master specification. Acyclic parameter data can be transmitted via a level 1 or 2 DPV1 service, allowing the processor to easily communicate with slave devices that support the PROFIBUS DPV0/V1 protocol.
This module acts as an input/output module between the PROFIBUS network and the ControlLogix processor. The data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network. The database is defined by the user and stored in the module to hold the data required by the protocol.
norm
Single slot – 1756 backplane compatible
The module is identified as an input/output module and has access to processor memory for data transfer between the processor and the module
Ladder logic is used for data transfer between modules and processors. Includes sample ladder file (additional instructions).
Local or remote rack
Configurable I/O backplane size provides optimal performance for remote rack applications
Enable CIPconnect. The module supports communication with ProSoft Configuration Builder and FDT comDTM via Ethernet routing using the Rockwell Automation Ethernet interface.
