Description
Product Type:Digital Output Module

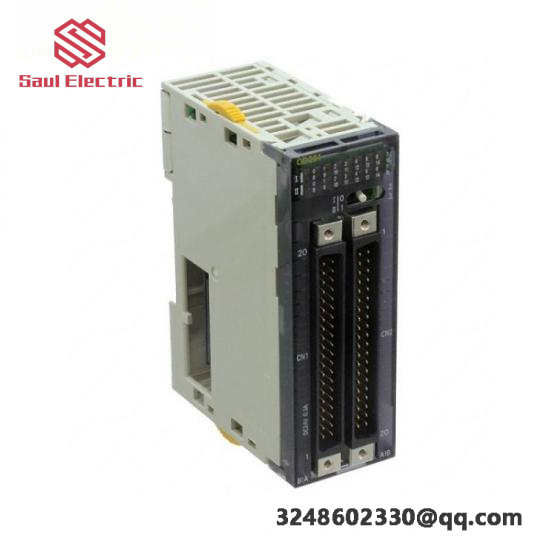

Model:CJ1W-OD261
OMRON Type Designation:CJ1W
Number of Outputs:64 Solid State
Response Time (ON):15μs
Response Time (OFF):80μs
Output Types:[“Relay Contact Outputs”,”Triac Outputs”,”Transistor Outputs”]
Output Options:[“Sinking Outputs”,”Sourcing Outputs”]
Sensing Distance (Optional for Proximity Sensors):8mm
Voltage Range:10 V ~ 30 V
Power Consumption:2W
Operating Temperature:-10°C to +55°C
Connection:DIN Rail Mounting
Protocol Compatibility:Standard Industrial Protocols
The CJ1W-OD261 Output Module is engineered to meet the demands of modern industrial automation systems, offering superior performance and reliability in control circuits.
Its solid-state design ensures minimal power consumption and reduced heat generation, making it suitable for use in environments where energy efficiency is critical.
The module supports various output types, allowing users to select the most appropriate configuration for their specific application requirements.
With its fast response times, the CJ1W-OD261 can quickly react to changes in input signals, improving system responsiveness and overall process control.
For users requiring higher current handling capabilities, this output module offers a choice between sinking and sourcing transistor outputs, ensuring compatibility with a wide range of loads.
The built-in load short-circuit protection feature safeguards the module against potential damage from accidental overloads, enhancing system uptime and reliability.
