NI voltage input module SCXI-1104C 32 Differential channel chassis

Many products are not available yet. Please contact us if you need more

If the product model does not match the picture, the product model shall prevail. Please contact us for specific product pictures, we will arrange to take photos in the warehouse for confirmation

We have 16 shared warehouses worldwide, so please understand that it can sometimes take a few hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

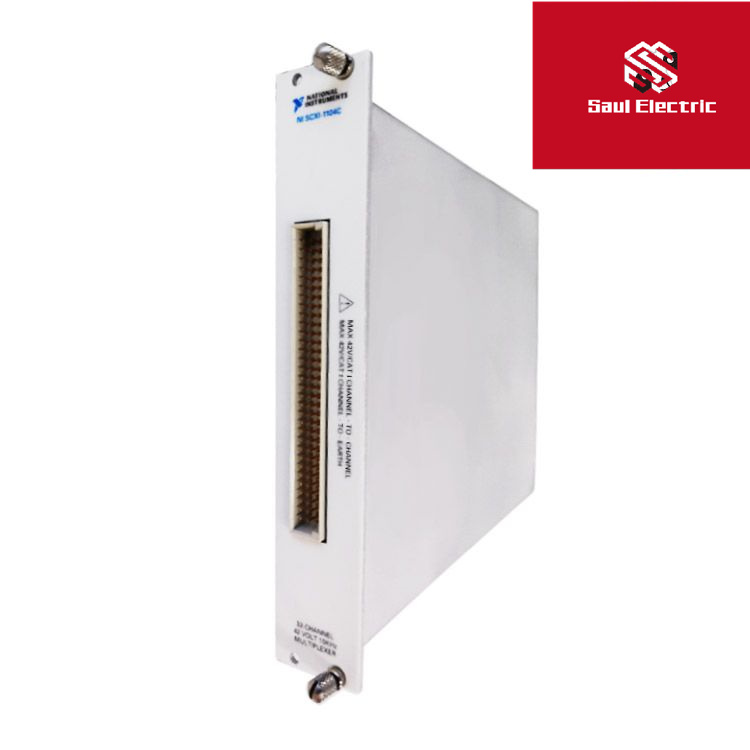

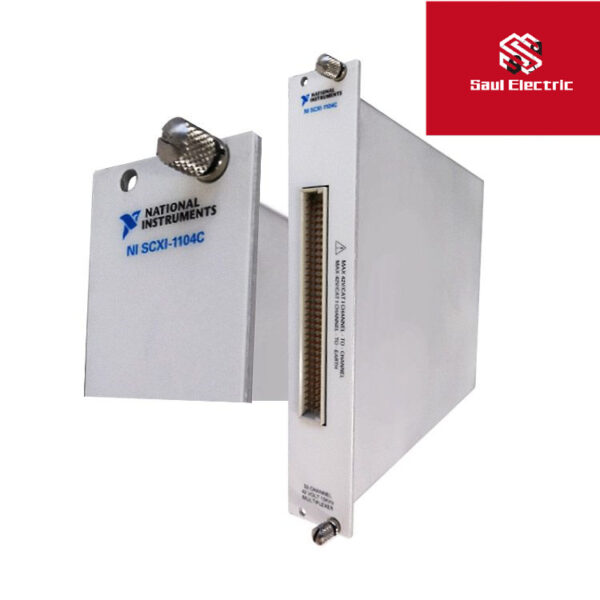

Voltage input module SCXI-1104C 32 differential channel. The National Instrument SCXI-1104C(Part number :776572-04C, 183087H-05) voltage input module has 32 differential channels and was created for signal conditioning of higher voltage signals. This model has a 10 KHZ cutoff frequency filter. If users want to use NI ScXI-1104C in a banded cable multi-case SCXI system, then they will need to use the SCXI-1346 multi-case adapter. If users choose not to automatically detect SCXI modules, they must add modules separately. This can be done by following the instructions in the user’s manual.

While utilizing software, the user can arrange pin 1,2, 4, or 19 to link to the analog ground of the Voltage Input Module. The user can utilize the pin that is linked to the analog ground as an analog power ground tie point to the SCXI-1104C. An important fact to remember is that the NI SCXI-1104C analog output is not overvoltage-protected. Therefore, applying external voltages to this output can damage the module. The analog outputs are short-circuit protected though. The device has a recommended warm-up time of 20 minutes and an operating temperature of 0 to 50 °C.

The National Instruments SCXI-1104C module can be calibrated by applying precision voltages to the channel inputs and/or grounding the channel inputs. This module should be recalibrated a minimum of once per year or anytime it is operated outside of the specified temperature range. The NI SCXI-1104C Voltage Input Module can be calibrated with a multiranging 8.5 digital multimeter. The device has a cut-off frequency of 10 kHz. When users complete a measurement with NI Software, the driver automatically uses the calibration constants to adjust the measured voltages to the correct values.

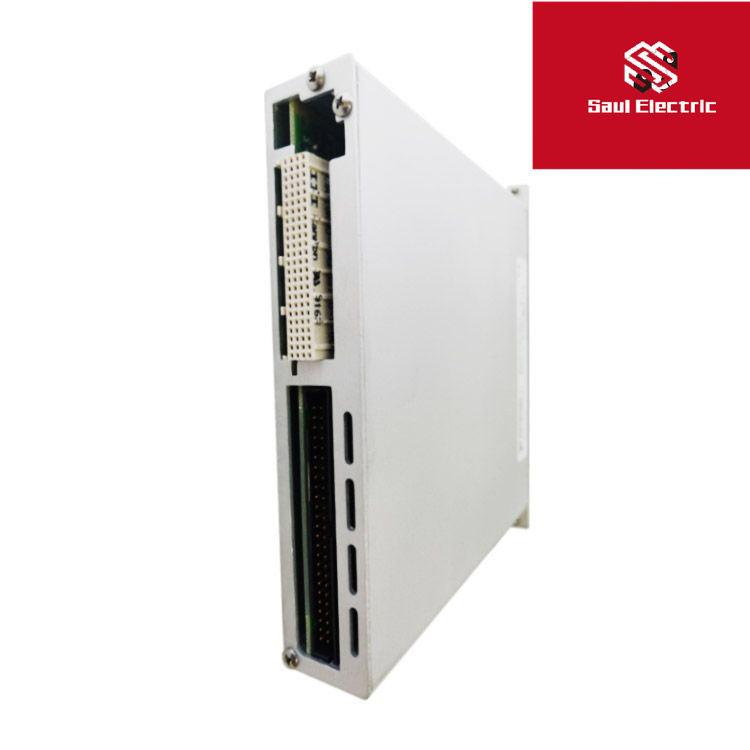

The NI-DAQ version 6.5.1 (or higher) is the software driver used in running the SCXI-1104C. To install the driver, an Application Development Environment such as LabVIEW, BridgeVIEW, LabWindows/CVI, Visual Basic (ComponentWorks), C,C++, VirtualBench, or Measure is required. The device has a 50-pin male ribbon cable back connector and a 96-pin male DIN C front connector.

SCXI-1104C Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves. The SCXI-1104C can be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated annually or biennially to ensure accuracy.
