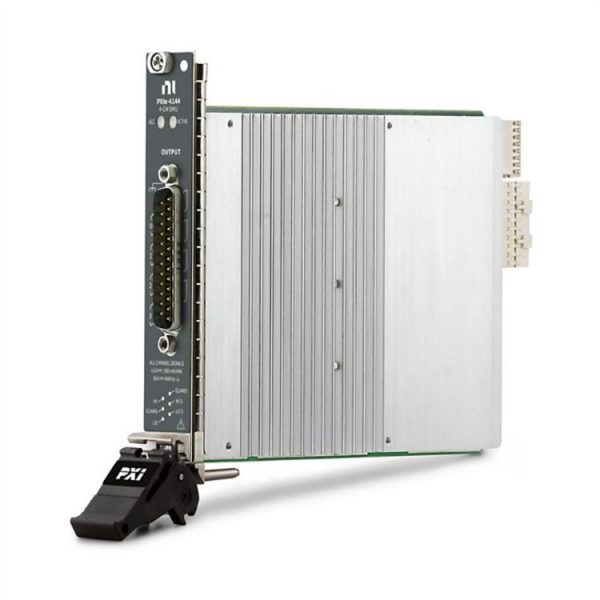

NI PXIE-4145 Multi Channel Data Collector

Description

The NI PXIe-4145 multi-channel data collector is a high-performance data acquisition device produced by National Instruments (NI) and belongs to the PXI Express (PXIe) series. The following is a detailed introduction about the device:
1、 Product Overview
NI PXIe-4145 is a high-performance, scalable real-time embedded controller designed specifically for industrial automation and test measurement applications. It integrates multiple high-performance processing units, cache, and memory, providing efficient signal processing and data processing capabilities. At the same time, the device supports multiple data encryption protocols to ensure the security and integrity of data during collection and transmission.
2、 Main functions and features
Multi channel data acquisition:
The PXIe-4145 has multiple input channels and can simultaneously collect multiple analog signals, making it suitable for applications that require monitoring multiple parameters simultaneously.
Supports different types of analog input signals, such as voltage, current, etc., and can adjust the measurement range according to module configuration.
High precision measurement:
This device has high measurement accuracy and can ensure the accuracy of data collection.
As a 4-channel source measurement unit (SMU), each channel integrates remote (4-wire) sensing functionality to achieve more accurate measurements.
High speed sampling and processing:
PXIe-4145 has a high sampling rate, which helps to shorten measurement time and capture the transient characteristics of the device.
The equipped processor and memory resources support efficient data processing, meeting the high real-time requirements of applications.
Rich I/O interfaces and communication interfaces:
Including multiple digital input/output (DIO), analog input/output (AIO), serial communication interfaces (such as RS-232, RS-485, CAN, etc.), and Ethernet interfaces.
These interfaces can easily connect various sensors, actuators, and other devices to achieve complex automation control and data acquisition tasks.
Security function:
Supports multiple security protocols (such as SSL/TLS, AES-256 encryption, etc.) and secure boot functionality to ensure data security and integrity.
Provide multiple authentication mechanisms (such as username/password authentication, digital certificates, etc.) to ensure that only authorized users can access and operate the device.
Scalability and flexibility:
Based on the PXIe platform design, it has good scalability and can add other PXIe modules as needed to expand its functionality.
Supports multiple development languages and tools (such as NI LabVIEW, C/C++, etc.), making it easy for users to develop and customize applications.
3、 Application Fields
The NI PXIe-4145 multi-channel data collector is widely used in industrial automation, testing and measurement, scientific research experiments and other fields. It can meet various complex data collection and processing needs, providing powerful technical support for engineers and researchers.
