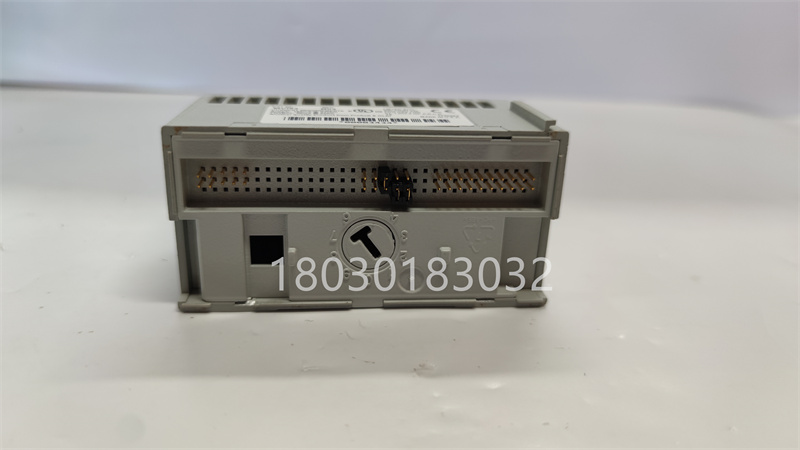

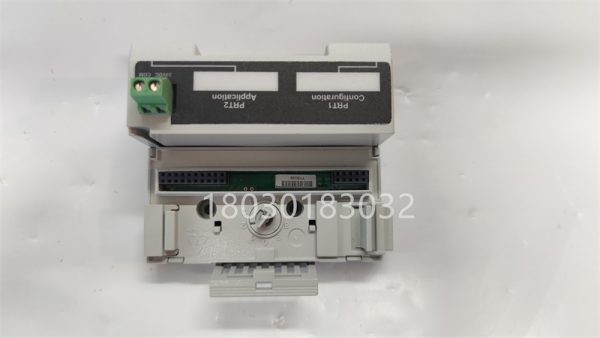

MVI94-MCM communication module

Description

The MVI94-MCM communication module is a device specifically designed for industrial automation and communication needs with a variety of features and functions. The following is a detailed analysis of the module:

I. Product overview
Make and Model: MVI94-MCM, probably made by ProSoft or a related manufacturer.
Enhanced master/slave Modbus communication modules designed for the Logix-XT control platform enable seamless communication between Rockwell Automation ControlLogix processors and devices using the Modbus RTU/ASCII serial communication protocol.
Second, technical characteristics
Modbus communication capability:
Support Modbus master/slave operation, allowing modules to initiate or respond to Modbus communication requests, suitable for a variety of applications.
The supported Modbus function codes include 1, 2, 3, 4, 5, 6, 8, 15, 16, 17, 22, and 23.
Data storage and management:
Data table sizes of up to 4096 data points enable storage and management of large amounts of data.
With the ability to store and transfer up to 5000 + registers between data files in the FLEX I/O processor, memory usage is completely user-defined.
Communication protocol and interface:
Support for Modbus RTU (Remote Terminal Unit) and ASCII (American Standard Code for Information Exchange) protocols, providing flexible communication options.
Supports a wide range of serial baud rates from 300 to 38,400 bps, ensuring compatibility with various Modbus devices.
Environmental adaptability:
Designed to operate in extreme environments, it can withstand temperatures from 0°C to 60°C (32°F to 140°F) and humidity levels from 5% to 95%.
Configuration and operation:
High configuration flexibility, with ports configured as Modbus slave devices, allowing remote master devices to interact with all the data contained in the module.
There is also a port configured as a virtual Modbus master that can actively issue Modbus commands to other nodes used on the Modbus network.
With simple ladder logic, complete setup process and module monitoring, which can be monitored via debug ports and configuration files.
3. Application fields
The MVI94-MCM communication module is used in a wide range of industrial applications, including but not limited to:

Industrial automation: Used to connect different brands and types of controllers for data exchange and integration.
Manufacturing: Connect different equipment and control systems in the production line to realize the monitoring and control of the production process.
Energy industry: In the field of power and energy, connecting power equipment and monitoring systems for remote monitoring and control.
Water treatment and environmental monitoring: Connect sensors and monitoring devices to monitor water quality and environmental parameters.
Transportation: In the field of traffic signal system, railway signal system, etc., connect traffic equipment to achieve intelligent traffic control.
Building automation: In building management systems, various building automation devices such as lighting, air conditioning and security systems are connected.
Oil and Gas: In the oil and gas sector, telemetry and remote control equipment are connected to enable monitoring and control of production and pipeline systems.
