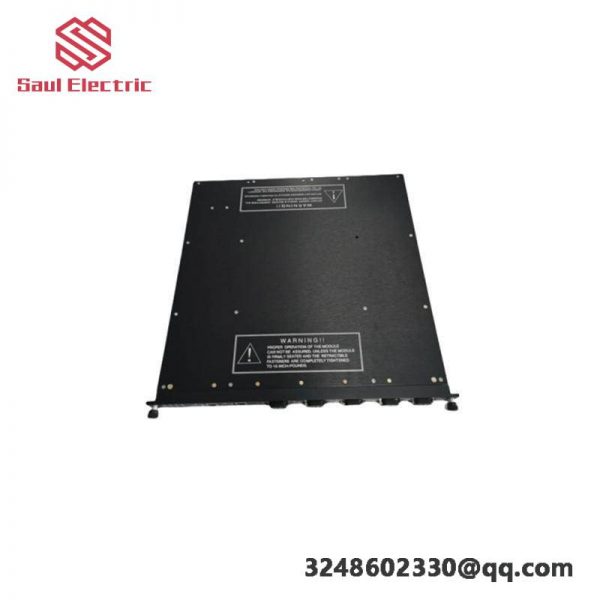

Invensys Triconex 3700A Analog Input Module – Reliable Industrial Control Solution

Description

Model Type:TMR, AI

Number of Input Points:32, differential, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:<.15% of FSR, from 0° to 60°C

Input Resistance (load):30 MΩ (DC), min.

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB

Normal Mode Rejection @ 60Hz:-17 dB

Normal Mode Rejection @ 120Hz:-23 dB

    Crafted with precision, the Invensys Triconex 3700A Analog Input Module is engineered to handle the most stringent industrial applications, ensuring unparalleled reliability and accuracy.

    With its versatile design and robust specifications, this module seamlessly integrates into complex systems, providing seamless data acquisition capabilities.

    Featuring high-resolution digital inputs, it ensures precise measurement and transmission of analog signals, crucial for advanced control systems and automation processes.

    The module’s isolation capabilities protect against electrical noise, ensuring uninterrupted performance in harsh environments.

    Optimized for efficiency and ease of integration, the Invensys Triconex 3700A Analog Input Module simplifies the setup process, reducing downtime and enhancing operational efficiency.
