Description

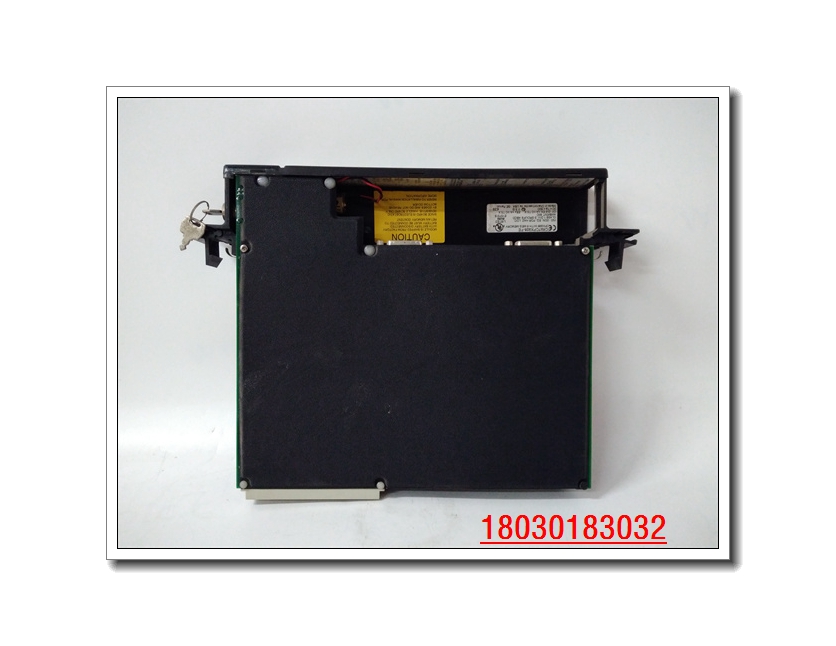

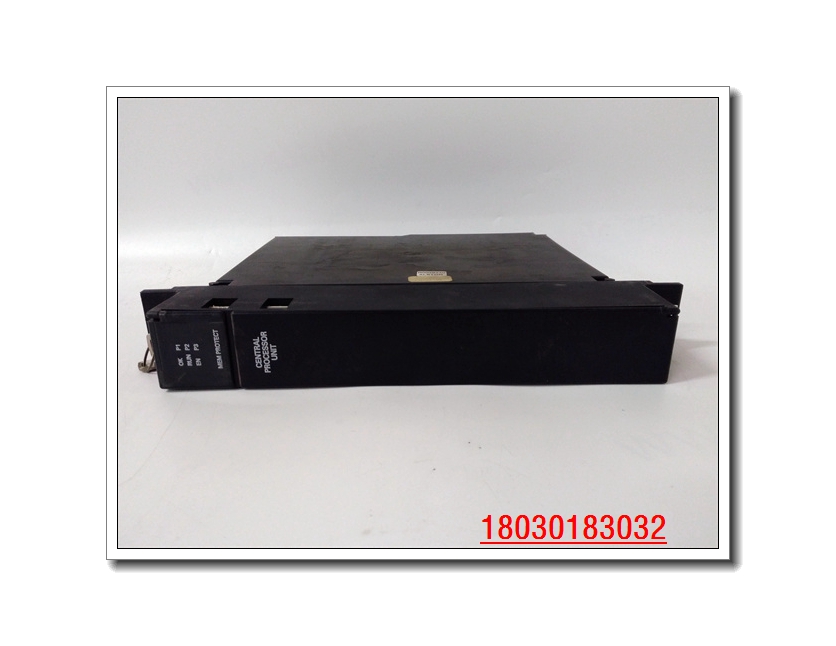

The IC697CPX928-HF is a central processing unit (CPU) module in the GE Fanuc 90-70 series, which is mainly used to execute user programs downloaded to the CPU memory. This single-slot CPU module is equipped with an 80486DX4 microprocessor that runs at 96 MHz and is capable of performing operations at 0.4 microseconds per Boolean function
. The module has 6MB of RAM for battery backup and 256KB of non-volatile user flash memory, which also stores the CPU firmware
.
The IC697CPX928-HF is capable of handling up to 12K of any combination of inputs and outputs, and up to 8K of analog inputs and outputs. It supports 32-bit floating point data, has high-speed processing capacity and large memory capacity, suitable for industrial automation and control systems
. In addition, the module supports a variety of communication protocols and interfaces, including one RS232 serial port, two RS485 serial ports, and one factory reset port for easy communication and integration with other devices and systems
.
The IC697CPX928-HF is configured using programming software and has no jumper terminals or DIP switches for hardware parameter Settings. Programming can be done via MS-DOS software products or Windows-based software products over Ethernet TCP/IP or SNP ports on Windows 95 or Windows NT
. The controller is also equipped with seven status leds, a lithium battery for holding the contents of the RAM, and provides communication ports on the front panel
.
The module is compatible with a variety of optional modules that enhance CPU capabilities and provide additional features such as Ethernet interface modules, programmable coprocessors, alphanumeric coprocessors, bus controllers, communication modules, I/O link interfaces, and the IC697 family of discrete and analog I/O modules
. The IC697CPX928-HF module requires a 5-volt DC input voltage with a nominal current of 3.1 amps and uses 70 CFM forced-air cooling to operate at ambient temperatures ranging from 32 to 140 degrees Fahrenheit
. Without forced air cooling, its operating temperature ranges from 32 to 122 degrees Fahrenheit
.
In addition, the IC697CPX928-HF module has forced air cooling and can be installed in a slot in the GE Fanuc Series 90-70 PLC rack. There are 7 LED indicators on the front of the module for displaying status information
.
