Description
IC693MDL740D 90-30 series Programmable Logic Controller (PLC) module information is as follows:
Overview:

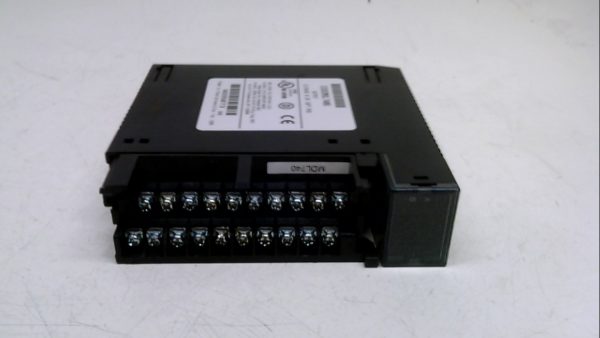

The IC693MDL740D is a module of the GE Fanuc series 90-30 programmable logic controllers (PLCS) specifically designed for digital input/output functions.
Input/output characteristics:
This is a positive logic output module with sixteen (16) source outputs.
Each channel has a capacity of 0.5 amps and allows the connection of loads including contactors, relays, indicators, buzzers, horns and other D24 VDC powered devices.
Operating voltage:
The module has a rated voltage of 12/24 volts DC and an operating voltage range of 12 to 24 volts DC (20%, – 15%).
Output structure:
The module has two sets of outputs, each with eight output points, for a total of 16 output points.
Each group of output points shares a common power output terminal.
LED indicator:
The IC693MDL740D has a front panel LED indicator located at the top of the module to show the startup status of each module channel as well as the operating status of the module.
Installation and compatibility:
The module can be installed on any available slot of the 5-slot or 10-slot series 90-30 substrate.
As long as the controller has enough memory to accommodate this 16-point output module, the number of module instances will vary.
Output characteristics:
Output characteristics include 4.78 amps inrush current of 10 ms, maximum output voltage drop of 1 VDC, unsteady leakage current of 1 mA, ON response time of 2 ms, and OFF response time of up to 2 ms.
Power consumption:
The power consumption of the module is 110 mA (all outputs are turned on) and power consumption comes from the 5-volt bus on the backplane.
Protection:
This module does not have an internal fuse, so an external fuse can be installed to further protect the module.
Application field:
The IC693MDL740D is suitable for a wide range of industrial automation systems, especially in environments where precise control and reliable output are required.
