Description
Operating Temperature Range:-40°C to +85°C
Angular Resolution:1 arcminute
Signal Output Type:Analog voltage
Input Range:0 to 10V DC
Operating Voltage:12V DC
Current Consumption:Less than 10mA
Communication Protocol:Modbus RTU
Number of Channels:4
Mechanical Mounting:M12x1.0 thread
Material:Aluminum alloy
Weight:Approximately 100g

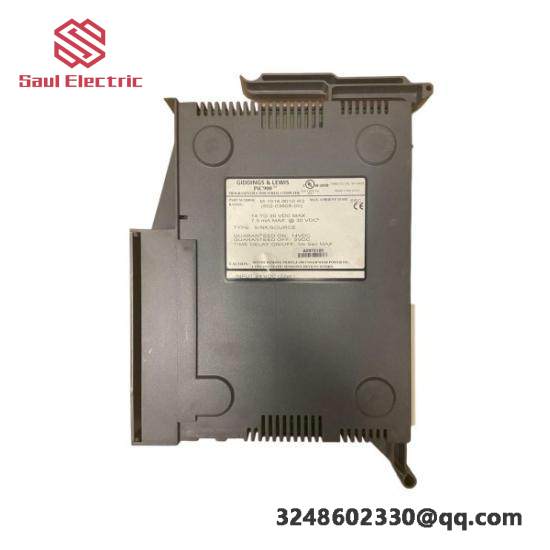

Integrating advanced engineering principles, the Giddings & Lewis PIC900 M.1016.9010 Input Resolver is engineered to offer unparalleled accuracy and reliability in demanding industrial environments. This 4-channel quadrature encoder is specifically designed to enhance the performance of motion control systems, ensuring precise positioning and speed measurement.
With a resolution of 2500 pulses per revolution (P/R), it ensures high-resolution tracking for applications requiring minute detail. The encoder is capable of operating at speeds up to 2000 revolutions per minute (RPM), making it suitable for a wide range of machinery and equipment.
Featuring sine and cosine output formats, the encoder facilitates easy integration with various control systems, providing a versatile solution for both analog and digital interfaces. Its compact design, equipped with an IP67-rated enclosure, ensures robust protection against dust and water ingress, enhancing durability in harsh industrial conditions.
Equipped with a M12 connector and a screw terminal block, the Giddings & Lewis PIC900 M.1016.9010 Input Resolver offers straightforward connectivity and easy wiring, streamlining installation processes. The encoder is powered by a low voltage of 12V DC, with a current consumption of less than 20mA, making it energy-efficient and compatible with a variety of power sources.
Engineered with precision in mind, this encoder operates within a temperature range from -20°C to +70°C, ensuring reliable performance across diverse climates. The combination of its robust construction, high accuracy, and broad compatibility makes the Giddings & Lewis PIC900 M.1016.9010 Input Resolver an indispensable component for enhancing the efficiency and precision of industrial automation systems.
