Description
Backplane Input Quantity:6

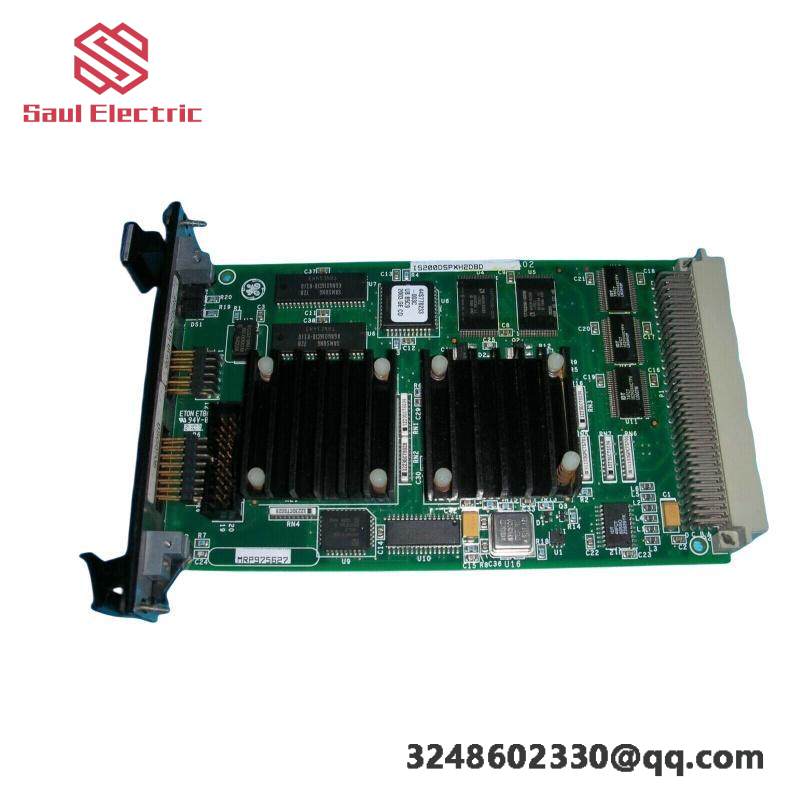

Board Description:Digital Signal Processor Control Board
Board Use Mode:Controller for Motor and Bridge Regulation
Functional Acronym/Abbreviation:DSPX
I/O Connector Quantity:3; P6, P1, and P5
LEDs:2, Status and Fault
Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters
Part-Specific Manual:GEI-100267B
Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus
The IS200DSPXH2DBD is an indispensable component for enhancing the operational efficiency of industrial turbine systems.
It is meticulously engineered with advanced digital signal processing capabilities, ensuring accurate and responsive control mechanisms.
Featuring an onboard firmware system that includes application code, boot loader, and configuration parameters, this board provides unparalleled customization and adaptability.
With six backplane inputs and a versatile I/O connector design, it seamlessly integrates with existing systems, facilitating easy installation and maintenance.
Equipped with two LEDs for status and fault monitoring, it offers real-time feedback, enabling proactive system management and troubleshooting.
Supporting asynchronous TTLs and a high-speed ISBus interface, it ensures robust communication and data transfer capabilities, crucial for complex industrial operations.
