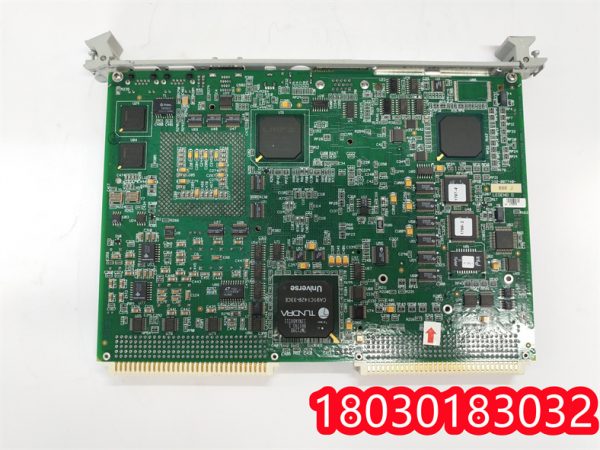

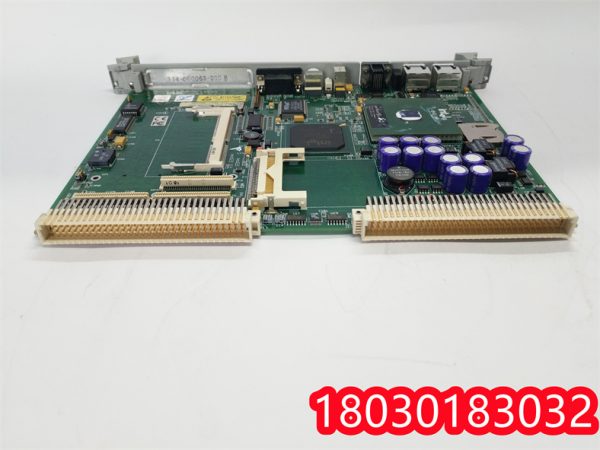

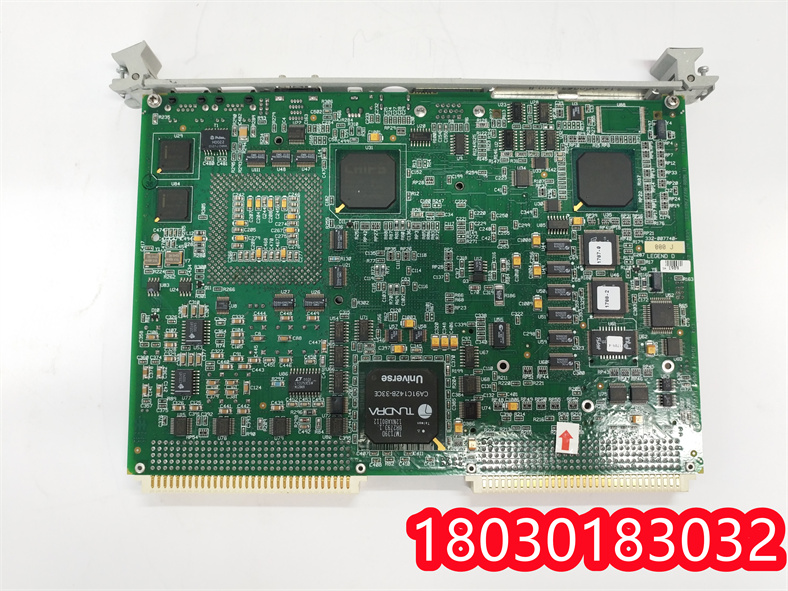

GE VMIVME7740-750 processor module

Description

Based on the information I have, I can summarize the following key points regarding the GE VMIVME7740-750 processor module:
1、 Basic Information
Model: GE VMIVME7740-750
Brand: GE (General Electric)
Type: VMEbus Single Board Computer Module/Processor Module
2、 Processor Features
Processor type: Based on Intel Pentium III Socket 370 processor
Processor speed: Although specific models (such as 750) may indicate different speeds, in general, the processor speed of the VMIVME7740 series can reach up to 850 MHz (as a reference).
Architecture: A superscalar architecture that allows multiple instructions (such as three instructions) to be executed per clock cycle.
Cache: Equipped with 256 Kbyte advanced transfer cache (on-chip full speed L2 cache), adopting a dual independent bus architecture, providing high bandwidth and high performance.
3、 Functional Features
Operating System Support: Supports multiple operating systems, including Windows 98 Second Edition, Windows NT/Windows 2000, Windows CE, Linux, VxWorks, QNX, Solaris, and Lynx OS.
Memory: Accept a 144 pin SDRAM SODIMM with a maximum memory capacity of 512 Mbyte.
Graphics: Supports high-resolution graphics and multimedia quality videos through Chips&Technology AGP graphics adapter, with screen resolutions of up to 1600 x 1200 x 64000 colors.
Network: Two onboard Fast Ethernet controllers, supporting 10BaseT and 100BaseTX interfaces, and supporting remote LAN startup.
Storage: Provides up to 192 Mbyte of IDE CompactFlash memory (optional).
Other functions: including programmable 16 bit timer, non-volatile SRAM, software optional watchdog timer, interface for connecting VMEbus P2 to hard disk/floppy drive, etc.
4、 Interfaces and extensions
VMEbus interface: Supports VME64 mode, including multiple modes such as A32/A24/D32/D16/D08 (EO)/MBLT64/BLT32.
PMC extension interface: PMC extension interface with VMEbus P2 input/output.
