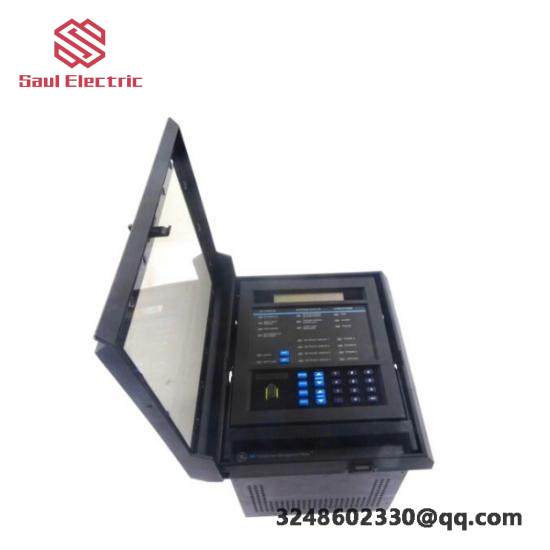

GE SR745-W2-P5-G5-HI-A-R-T Relay – Advanced Transformer Protection System

Description

Model Number:SR745-W2-P5-G5-HI-A-R-T

Brand:GE

Type:Transformer Protection Relay

Module Category:Relays

Protection Levels:Overexcitation, Transformer Overload, Frequency Rate-of-Change

Display:40 Character Enhanced LCD

Analog Outputs:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Operating Voltage Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

Dimensions:Height 9″, Depth 7 ⅛”, Width 7″

Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

Relay Features:Adaptive response to system events, Dynamic CT Ratio Mismatch Correction, Hottest Spot Monitoring

    Integrating advanced adaptive features, the GE SR745-W2-P5-G5-HI-A-R-T Relay ensures real-time response to transformer-related events, significantly reducing stress on critical components.

    Equipped with a 40-character enhanced LCD display, this relay offers clear, instant feedback on operational statuses and alerts users to potential issues proactively.

    The enhanced design accommodates a variety of input/output configurations, including a user-set quantity monitoring feature through the optional general-purpose transducer input, enhancing system adaptability.

    Engineered for durability and precision, this relay is built to withstand harsh industrial environments, providing reliable protection against overexcitation and transformer overload conditions.

    With its comprehensive set of features tailored for transformer management, this GE Relay is a vital component for safeguarding critical electrical infrastructure, ensuring optimal performance and minimizing downtime.
