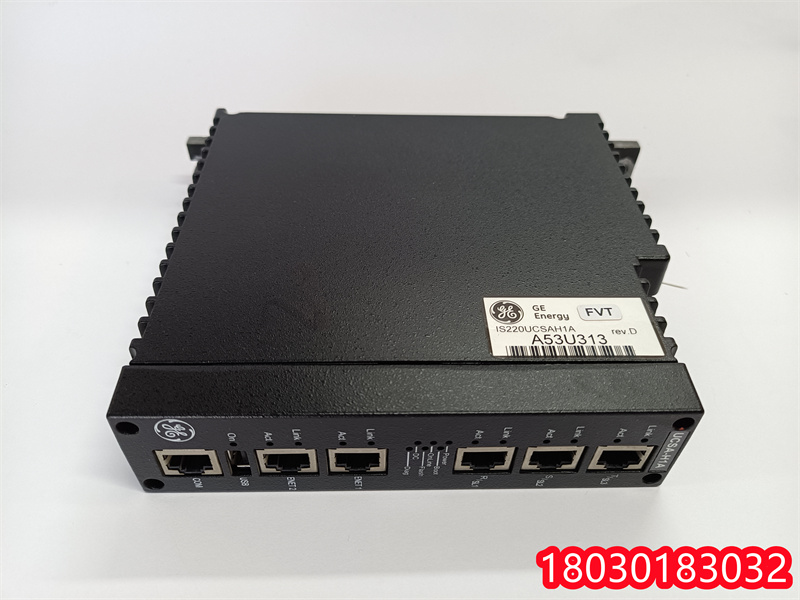

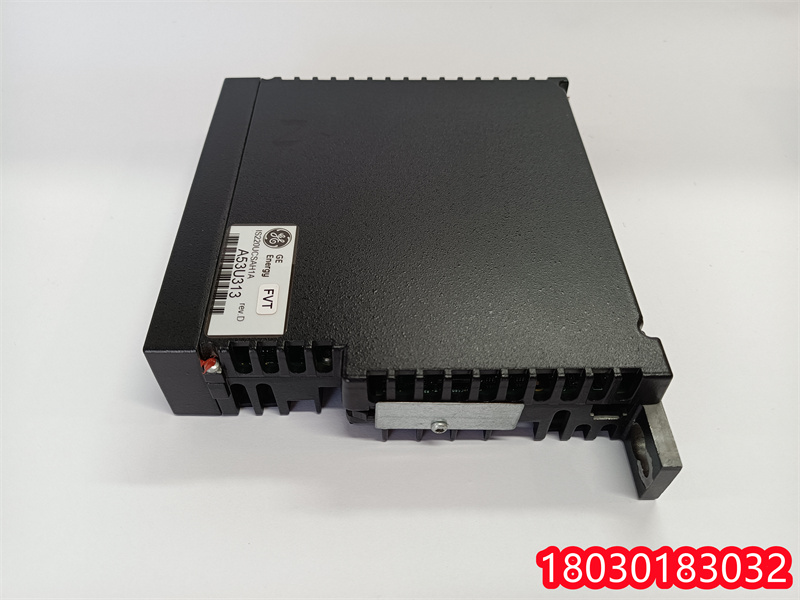

GE IS220UCSAH1A Embedded Controller Module
Description：
IS220UCSAH1A works on a QNX operating system. It has a Freescale 8349, 667 MHz processor. The Mark* Vle UCSx controllers are a family of stand-alone computers that run theapplication code. The controller mounts in a panel, and communicates with the I/Opacks through on-board I/O network interfaces. The controller operating system (OSis ONX’ Neutrino, a real time, multitasking OS designed for high-speed, highreliability industrial applications. Five communication ports provide links to I/Ooperator and engineering interfaces are as follows.
Ethernet connection for the Unit Data Highway (UDH) for communication withHls, and other control equipmment
Ethernet connection for the R S. and T I/O network
RS-232C connection for setup using the COM1 port
The stand-alone controllers offer the following advantages over the Compact PCIand Mark VIe controllers.
Single module
Built-in power supply
No jumper settings required
No battery
No fan
Smaller panel footprintTWEasy access to CompactFlash
The IS220UCSAH1+ Module contains a 667 MHz Power OUICC II Pro Freescaleprocessor. Two 10/100BaseTX Ethernet ports provide connectivity to the UDH. andthree additional 10/100Base TX Ethernet ports provide connectivity to the IONets.
