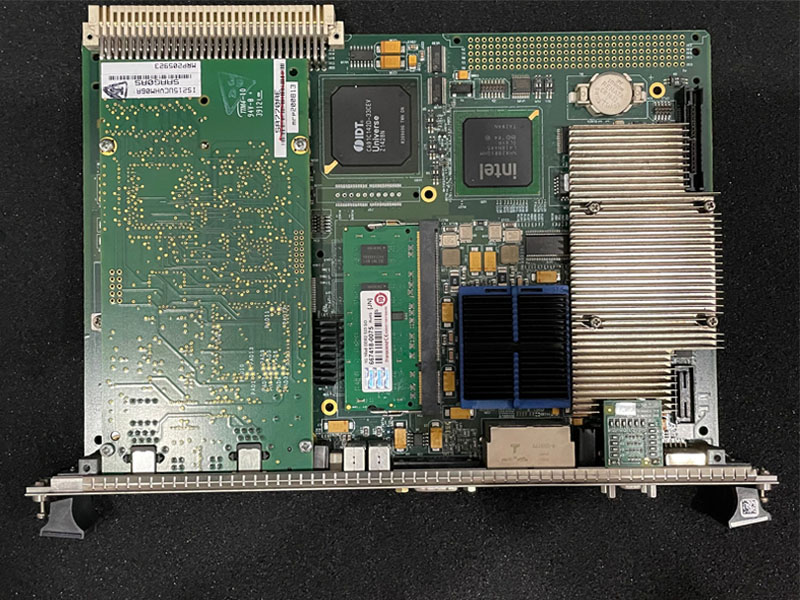

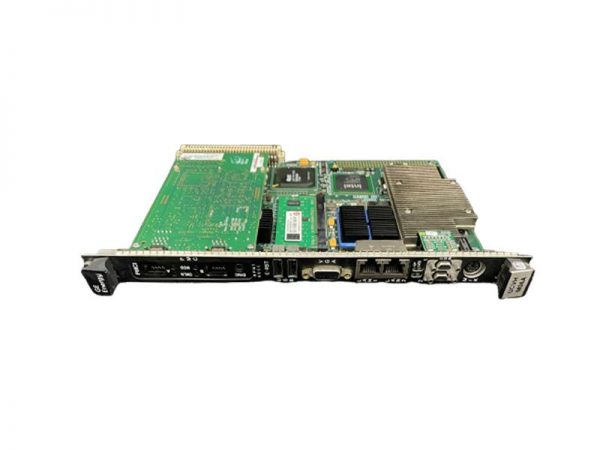

GE IS215UCVHM06A VME Processor Control Card

Description

The GE IS215UCVHM06A VME processor control card is a control card developed by GE specifically for the fields of industrial automation and mechanical equipment. The following is a detailed introduction about the control card:

1、 Basic Information
Product Name: GE IS215UCVHM06A VME Processor Control Card
Manufacturer: GE (General Electric)
Type: VME Processor Control Card
System: Mark VI Control System
2、 Functional Features
Processor performance:
Adopting Intel’s ultra-low voltage CeleronTM processor with a running frequency of 1067 MHz (1.06 GHz).
Equipped with 128 MB flash memory and 1 GB synchronous dynamic random access memory (SDRAM) to ensure efficient and stable data processing.
Network Communications:

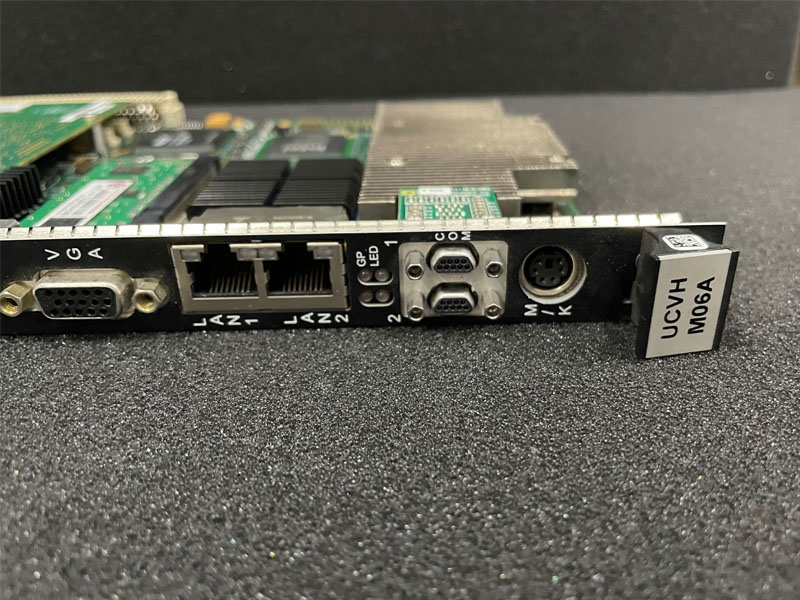

Equipped with two 10BaseT/100BaseTX Ethernet ports, each port uses an RJ-45 connector to support network communication and data exchange.
The first Ethernet port is used to establish a connection with the Universal Device Host (UDH) for configuration and point-to-point communication.
The second Ethernet port runs on a different IP logical subnet, supporting Modbus communication protocol and dedicated Ethernet Global Data (EGD) network, enhancing the security and efficiency of data transmission.
Rich interfaces:
Provide 2 USB ports for data transfer and peripheral device connection.
Two COM ports with LED, supporting serial communication and providing visual feedback.
Mouse/keyboard connector, allowing users to input for configuration and control.
VGA display port provides an interface for external display devices.
Adaptability and flexibility:
Operators can flexibly mix and match controllers and input/output redundant configurations to meet specific requirements of different applications.
By utilizing ControlST software, real-time analysis and adaptability are provided to enhance decision-making and facilitate rapid response to dynamic factory conditions.
3、 Application Fields
The GE IS215UCVHM06A VME processor control card is suitable for control systems in various industrial automation and mechanical equipment fields, such as power, petrochemical, metallurgical and other industries.
