Description
Model Number:IS200TREGH1B
Category:Termination Board
Manufacturer:General Electric
Series:Mark VI
Component Type:Printed Circuit Board (PCB)
Application:Steam & Gas Turbines Control
Dimensions:L x W x H (in mm) – 100 x 150 x 20
Weight:0.5 kg
Operating Temperature Range:-20°C to +60°C
Environmental Compliance:CE, RoHS
Connectivity:Transformer-based with clear plastic and silver wire covers
Power Consumption:Max: 10W, Average: 5W

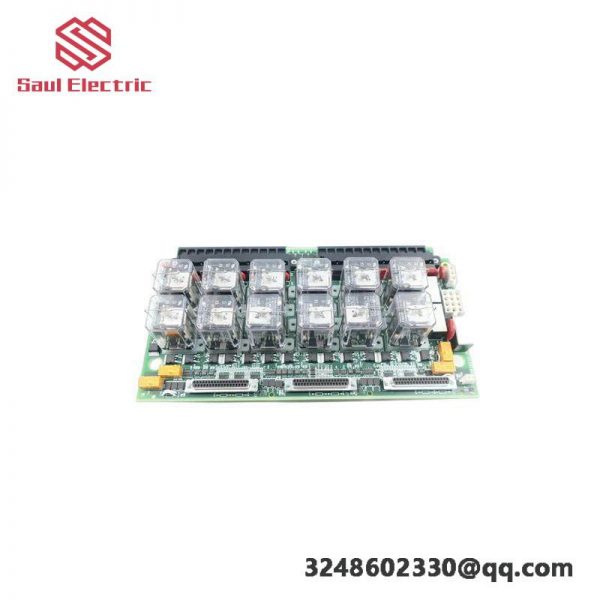

The IS200TREGH1B is meticulously designed for seamless integration into GE’s Mark VI series of turbine control systems, offering unparalleled reliability and performance under extreme conditions.
Featuring an array of square-shaped transformers covered with protective transparent plastic, this termination board ensures safe and secure operation while providing critical functionality in emergency scenarios.
Equipped with three black variable resistors or potentiometers for fine-tuning system responses, this board enables precise adjustments to meet specific operational requirements.
The inclusion of four large rectangular capacitors in two distinct areas ensures stable power distribution and enhanced signal integrity, contributing to optimal system performance.
Located along the right border are four connection ports, facilitating easy connectivity with other system components, thus enhancing the overall efficiency of the turbine control system.
Compliant with ISO 9001 quality standards, the IS200TREGH1B undergoes rigorous testing and manufacturing processes, ensuring its durability, reliability, and compatibility across various industrial applications.
