Description

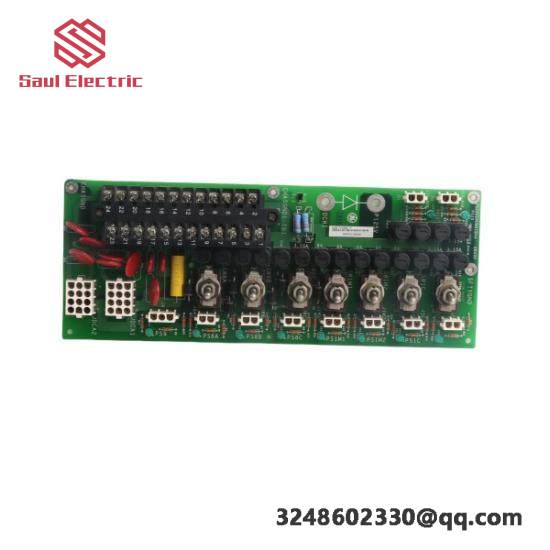

Model:IS200EPDMG1BAA
Manufacturer:General Electric
Series:Mark VI
Type:Circuit Board
Dimensions (W x L):4in x 6.5in
Faceplate Dimensions (W x H):2.25in x 4in
Weight Before Packaging:<2lbs
Ethernet Capabilities:Yes
Control Type Options:Simplex or TMR (Triple Modular Redundant)
Terminal Blocks:2
Terminal Block Locations:Bottom corner
Power Supply Capacity:N/A (Integrated)
Memory Device:Serial 1024-bit
Bus Host Processor:Parallel-style
Plug Connectors:J2 and J1
Transformer Shape:Square
Transformer Position:Centered
Electronic Component Adjacent to Transformer:DS1
Full Part Number:IS200EPDMG1BAA
The GE IS200EPDMG1BAA is a critical component of the Mark VI series, known for its reliability and efficiency in managing and controlling gas and steam turbines.
Featuring advanced Ethernet capabilities, this board enables seamless integration with modern industrial networks, enhancing operational flexibility and connectivity.
With support for both Simplex and TMR control configurations, the IS200EPDMG1BAA caters to various system sizes and complexities, ensuring optimal performance across diverse industrial settings.
The inclusion of dual terminal blocks in the bottom corner facilitates easy connection to other system components, streamlining the installation process and reducing setup time.
Equipped with a compact yet powerful 24 Vdc power supply, this board ensures stable operation while maintaining a lightweight design for convenient handling and placement within the control cabinet.
