GE General Electric IC695CHS012 Communication Module

Description

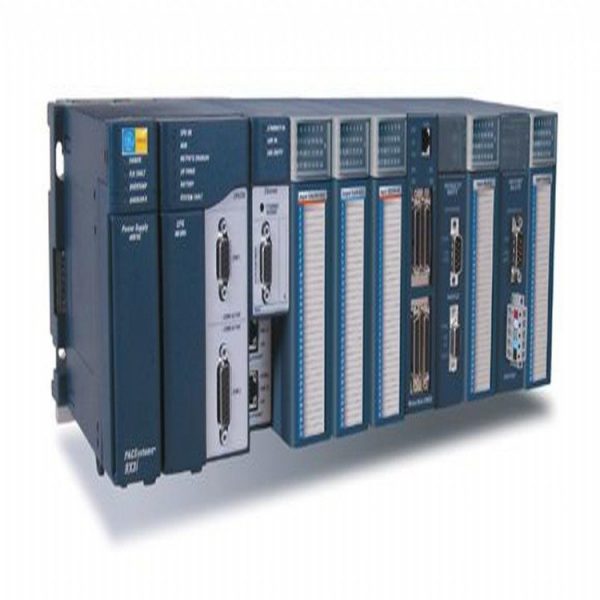

The IC695CHS012 communication module from GE General Electric is actually a universal backplane of the PACSystem RX3i series, rather than a traditional communication module. This backplane plays a critical role in industrial automation systems, providing necessary physical support and communication channels for RX3i modules and connections. The following is a detailed analysis of the IC695CHS012 universal backplane:
1、 Product Overview
Model: IC695CHS012
Series: GE Fanuc RX3i PACSystems
Type: 12 slot universal backplane
2、 Main features
Slot configuration:
Featuring 12 slots and supporting hot swappable functionality, it allows for module replacement or addition without affecting the operation of other modules.
The slot number is printed on the backplane for easy identification and management.
Communication support:
Supports I/O devices based on PCI (IC695) and high-speed serial (IC694).
As a dual bus backplane, it supports both PCI and high-speed serial devices, improving the flexibility and scalability of the system.
Power supply and power consumption:
The internal power supply used is 240 mA @ 5 VDC and 600 mA @ 3.3 VDC.
The power consumption is 600 mA at 3.3 V DC voltage and 240 mA at 5 V DC voltage.
Physical specifications:
Size: 5.57 x 18.01 x 5.80 inches (height x width x depth), which is 141.5 x 457.5 x 147.32 mm.
It must be installed horizontally and require at least 102 millimeters (4 inches) of space on all four sides for normal operation and air cooling.
Installation and Protection:
Can be installed in enclosures with IP20/NEMA/UL Class 1 protection level, but it is recommended to install in enclosures with IP54 or higher protection level to ensure higher protection level.
Its mechanical strength must be able to withstand an impact energy of 3.5 joules.
Expansion and Connection:
Support installation of optional baseboards such as controller base and Ethernet expansion base.
There is a TB1 terminal board on the left side for terminating optional external 24VDC power supplies for certain IC693 and IC694 modules.
3、 Application scenarios
The IC695CHS012 universal backplane is widely used in the field of industrial automation, especially in control systems that require high flexibility and scalability. It supports multiple types of I/O modules and option modules, which can meet the control needs of different industrial scenarios
