Description
Operating Frequency:50 kHz
Output Current:390/500 MA (Max)
Line Voltage:90-300VDC, 70-265VAC
Enclosure Rating:20-X
Phase CT:5A
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2
Input Type:RTD
Number of CT Secondaries:5
Voltages Supported:DC 90 – 300 Volt, AC 70 – 265 Volt
Analog Outputs:4
Front Panel Design:Enhanced with RS232 port and redesigned keypad for easy setpoint entry and editing
Material:Flame, corrosion, and dust retardant
Dimensions:Width: 12 inches, Height: 11 inches, Depth: 10 inches
Weight:Approximately 17 pounds

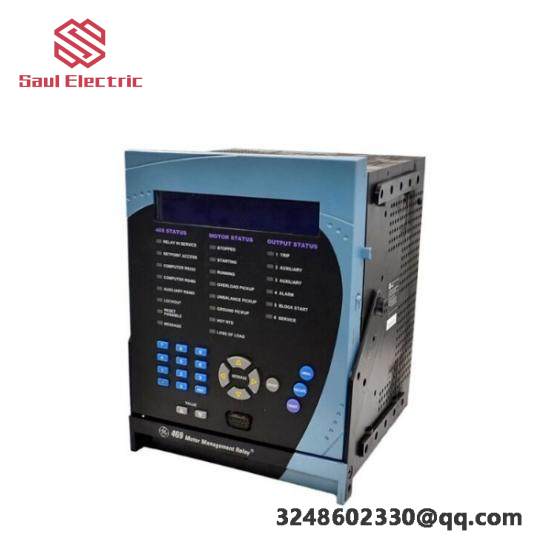

The GE Fanuc SR 469 P5-HI-A20 Motor Protection System boasts multiple RTD inputs capable of determining actual temperature and hottest points, crucial for precise thermal management in motor systems. Equipped with three-wire RTDs featuring 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, it ensures accurate and reliable readings.
Designed for motor systems in hazardous operating environments, the system includes an optional conformal coating to safeguard against dust, high temperatures, and other contaminants. This feature significantly enhances durability and lifespan.
The system’s enhanced faceplate is divided into four sections, facilitating easy access to RS232 ports for direct connection to EnerVista 469 software, a redesigned keypad for setting and editing parameters, and an expandable display area for clear readouts.
With a compact yet robust design, the GE Fanuc SR 469 P5-HI-A20 is housed within a standard SR-469 series chassis, which is resistant to flames, corrosion, and dust, ensuring reliable operation under various environmental conditions.
Offered at a highly competitive price point, this motor protection system is an indispensable asset for industries seeking to enhance efficiency, reduce maintenance costs, and maximize the operational lifespan of their motor systems.
