GE DS3800HMPJ1A1D Built-in vertical pin connector

Description

Ge ds3800hmpj1a1d Built-in vertical pin connector

Product description

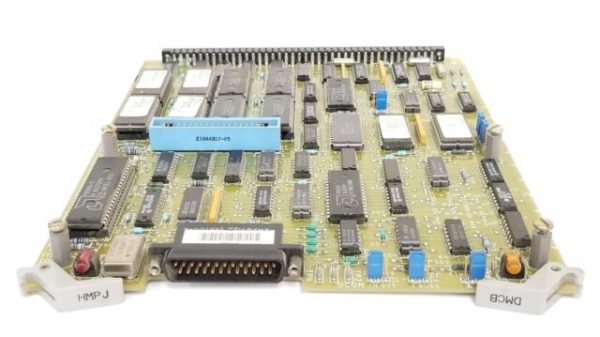

The DS3800HMPJ1A1D is a GE Mark IV circuit board. The board is suitable for mkiv turbine control systems designed to manage industrial gas and steam turbines of all sizes and complexities. The Mark IV is the first electronic speed system to improve reliability by using a triple modular redundancy arrangement. This practice of using a repeating processor to vote on all inputs reduces downtime throughout the system.

The DS3800HMPJ1A1D design with a backplane connector on one short side and a cable connector on the other is just a version of the board available in our warehouse stock. The board is labeled with its id number as well as several codes to help determine location, wiring, and other board specifications. Codes may vary depending on the individual unit sold.

ds3800hmpj1a1d built-in vertical pin connector. This is close to the four brackets mounted on the board surface, allowing the addition of an auxiliary sub-board that will communicate with the DS3800HMPJ1A1D via a cable connector. The board has <> multiple integrated circuits, including multiple PROMs/EPROMs. Other board components include leadership indicators (one yellow, one red), resistor network arrays, resistors, diodes, capacitors, test points, and jumper switches. Jumpers are used to change the Settings on the board; This allows the board to be customized to the requirements of the ultimate user. The Ge documentation provides more information about jumper Settings. However, the jumper on the replacement board should usually match the jumper on the board to be replaced
