Description

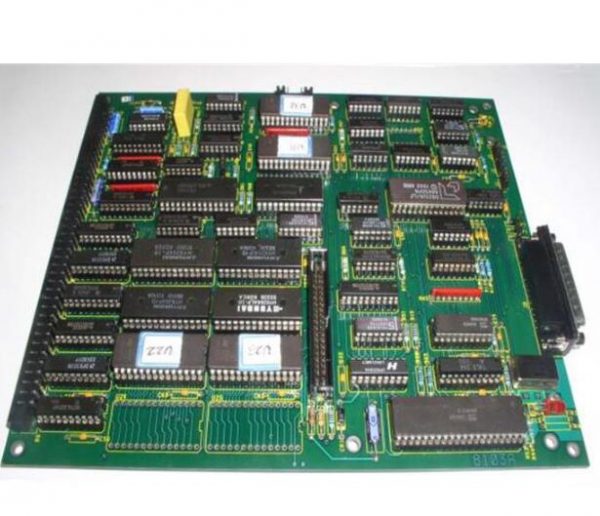

GE’s DS3800HIOA1B1B is a circuit board that controls motor speed and has the following features and functions:
Mounting method: The board has a hole in each corner for mounting through screws.
Microprocessor and memory modules: The board contains a microprocessor and multiple erasable programmable read-only memory (EPROM) modules.
Connector configuration: Has a 34-pin connector that can be accessed from the edge of the board for signaling with other boards.
Test points: The board is also populated with test points, which facilitate troubleshooting and performance testing.
Signal processing: 34 individual signals are connected to the 34-pin connector via a ribbon cable, and these signals are commands that the board sends to other boards for processing, while the board also receives and processes other signals.
Cable cabling: Ribbon cable needs special consideration because it is a wide cable that may block air flow. Proper cabling helps maintain airflow.
Esd measures: When connecting cables and installing the circuit board, you need to take ESD measures, such as wearing a wrist strap, to protect the components on the circuit board from ESD damage.
The DS3800HIOA1B1B circuit board is a professional control device from GE for precise control of motor speeds and is suitable for a variety of industrial automation applications.
