Description
GE DS200SHVIG1 (similar model) Overview
Product Type:

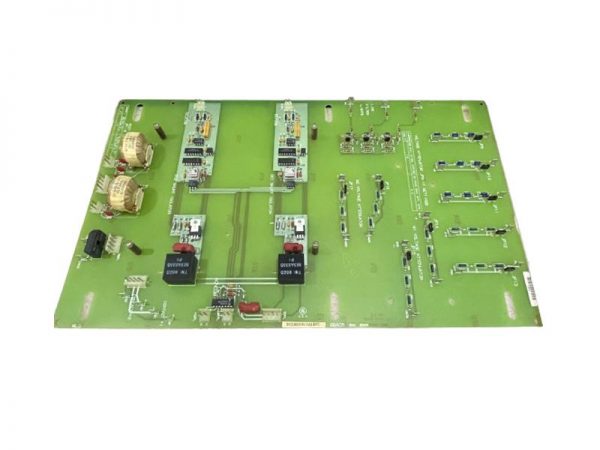

The DS200SHVIG1 is a high voltage interface board produced by General Electric (GE) as a member of the Mark V series, which can be used in a variety of different drives and exciters under the GE brand.
Main functions:
Installing this card provides an interface point for signal communication between the SCR bridge and the power supply of the driver.
PCCA (Power Connection Card), power supply, and meter cards can use this interface board.
It provides the medium for sending the critical voltage signal to the rest of the drive.
Technical features:
The input signal, which ranges from -500 mV to 500 mV, is converted into a difference frequency output from 0 to 500 kHz and then sent to the power card inside the driver.
Seventeen configurable jumpers with 10:1 current transformers are integrated on the board to provide additional attenuation capacity for line and bridge voltages.
If any of the filter fuses are blown, three LED indicators on the circuit board will alert the user to the error.
Installation and configuration:
When installing, all installation parameters provided by the manufacturer need to be followed to ensure that both the board and the driver are operating as expected.
The DS200SHVIG1 includes a hardware jumper optional 10:1 current transformer to provide additional current attenuation capability.
berg or manually removable jumpers on the board are identified by JP or BYP nominations for manufacturing tests or customer options.

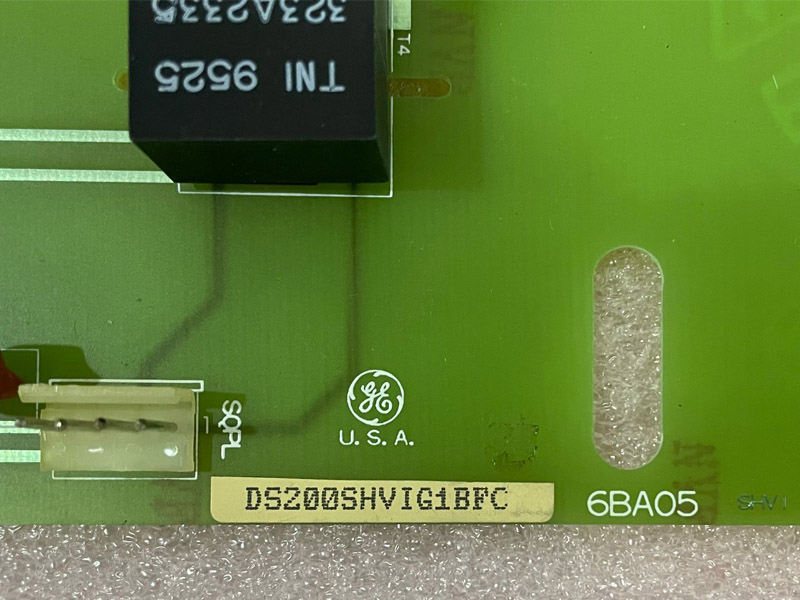

Special instructions for GE DS200SHVIG1BFC
Because the “GE DS200SHVIG1BFC” may be a specific configuration or custom model, its specific features and functions may differ from the standard DS200SHVIG1.
If the model does exist, it may have additional features or optimizations for specific applications.
