Description

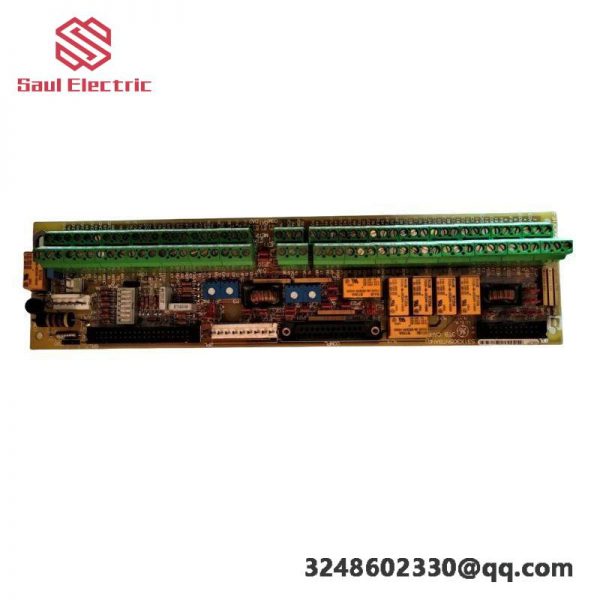

Product Type:NTB/3TB Terminal Board
Series:531X
Model Number:531X305NTBANG1
OEM:GE Motors and Industrial Systems
Instruction Manual:GEI-100020B (Supersedes GEI-100020A)
Weight:0.44 kg
Power Consumption:Regulated supplies at 5 VDC and 15 VDC; Unregulated supplies at 24 VDC or 125 VAC
Encoders Compatibility:Configurable using onboard jumpers for 5 V and 15 V
Relay Outputs:7, comprising either form A or form C outputs with contacts rated at 120 VAC
Low Level Analog I/O Scaling:Utilizes four potentiometers for easy configuration
Installation Parameters:Included with the product for seamless integration
Crafted for high-performance industrial environments, the GE 531X305NTBANG1 Terminal Board boasts a robust design optimized for seamless integration into complex control systems. Its advanced passive-interface circuitry ensures reliable signal processing and distribution, making it a critical component for maintaining operational efficiency.
With versatile power supply capabilities, the board can generate both regulated and unregulated power, accommodating a wide range of applications from motor control to data transmission. The onboard encoder configuration via jumpers allows for precise tuning to match specific system requirements.
Featuring seven relay outputs, the board provides flexible control over various mechanical and electrical systems. Each relay is equipped with contacts rated for 120 VAC, ensuring safety and durability in demanding industrial settings.
The board’s inclusion of low-level analog I/O and analog tach coarse scaling offers unparalleled flexibility in data acquisition and processing. These features are further complemented by support for RS-232C and RS-422 serial interfaces, enabling seamless communication with other devices in the network.
Engineered with meticulous attention to detail, the GE 531X305NTBANG1 Terminal Board is fabricated using premium materials for optimal performance and longevity. Its compact yet robust construction ensures easy installation and maintenance, reducing downtime and enhancing operational efficiency.
