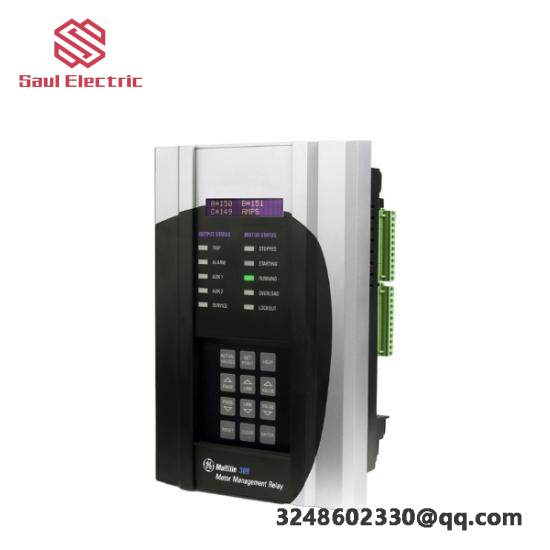

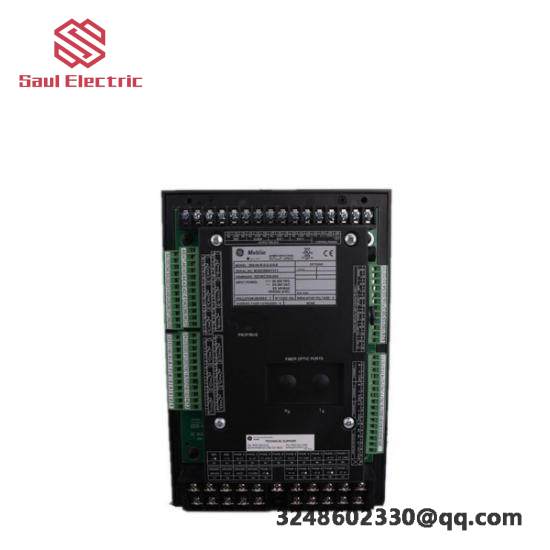

GE 369-HI-R Motor Management Relay, Advanced Protection & Monitoring Solution

Description

Control Power Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz

Differential Switch Time Delay:<200 ms

Dimensions:Approx. 29.6cm H x 10.7cm W x 20.5cm L

Insulation Class:I

Phase Current Input:1 A and 5 A secondary RTD inputs

RTD Inputs:3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, 10 Ω copper

Weight:Approx. 10 lbs

    The GE 369-HI-R-0-0-0-0-E Motor Management Relay is an advanced solution for industrial motor control and protection, equipped with features like event reporting, waveform capture, and startup data logging.

    Adaptive to various motor systems, this relay learns and adjusts based on the unique parameters of the motor environment, ensuring efficient and reliable operation.

    With its robust design and comprehensive feature set, the 369-HI-R-0-0-0-0-E is capable of monitoring critical metrics such as undervoltage auto-restart, reverse power, starter failure, and more, enabling proactive maintenance and minimizing downtime.

    The modular design allows for flexible integration into existing systems, supporting a wide range of power sources and providing users with precise control over their motor operations.

    Engineered with high-quality materials for durability and reliability, this relay is suitable for medium to large-sized industrial applications, delivering superior performance under challenging conditions.
