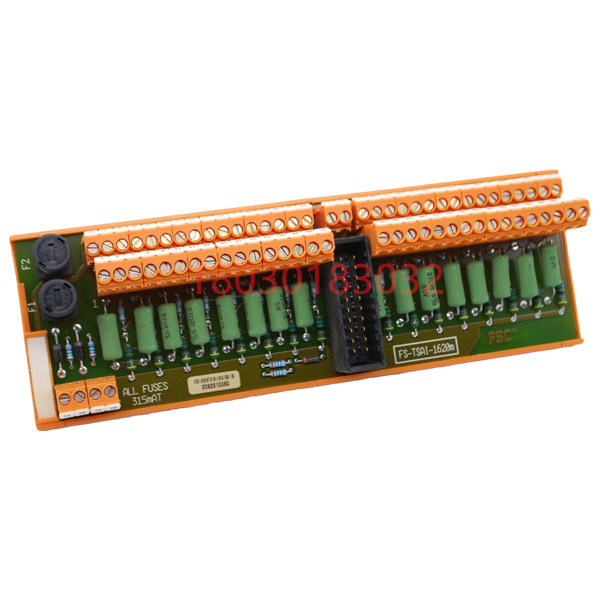

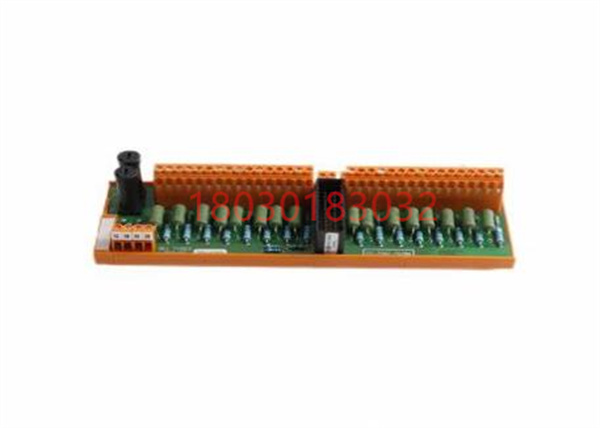

FC-TSAI-1620M Security manager system module

Description

FC-TSAI-1620M Security manager system module

Honeywell FC-TSAI-1620M is a safety manager system module designed specifically for industrial process safety. As a core component of the Safety Instrumentation System (SIS), it is responsible for monitoring process parameters, executing safety logic, and triggering safety interlocking actions to ensure the safe operation of industrial processes.
Main functions and characteristics
Security logic solution: Processing complex security logic at high speed to ensure rapid response to security events.
Redundant design: Adopts redundant design to improve system reliability and availability.
Flexible I/O configuration: Supports multiple types of input/output modules to adapt to different application scenarios.
Integrated diagnosis function: It can monitor the system status in real time and provide fault diagnosis information.
Compliance with safety standards: In line with SIL3, IEC61508 and other international safety standards.
Application scenario
FC-TSAI-1620M is mainly used in the following fields:
Oil and gas: refineries, gas processing plants, etc.
Chemical: chemical production plant.
Electricity: power plants.
Pharmaceutical: Pharmaceutical factory.
Working principle
The FC-TSAI-1620M monitors process parameters in real time by connecting various sensors and actuators. When the process parameters exceed the safety limit, the safety manager will trigger the corresponding safety interlocking action according to the pre-programmed safety logic, such as closing the valve, stopping the motor, etc., to prevent accidents.
Technical specifications (part)
Processor speed: 800MHz
Memory: 1GB RAM
Communication interface: Ethernet, USB, RS-485
Operating temperature range: -40°C to 70°C
Power supply: 24 volts DC
Certification: SIL3, IEC61508, FM and CSA
