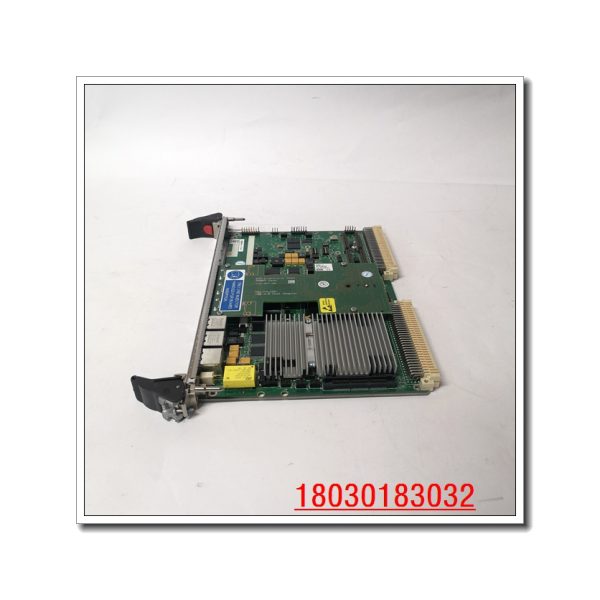

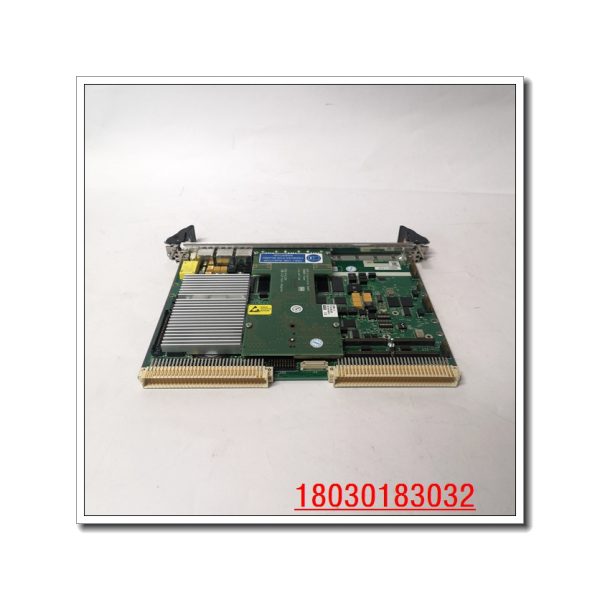

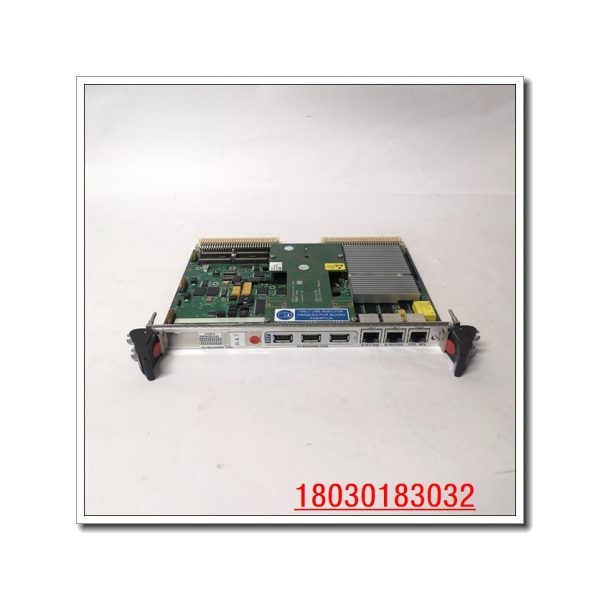

Emerson MOTOROLA MVME6100 digital output module

Description

The Emerson MOTOROLA MVME6100 Digital Output module is a high-performance embedded computer board based on the VMEbus standard and powered by a PowerPC processor for high-performance embedded computing and control applications. It has a variety of digital output channels, can output high and low level signals, used to control the motor, valve, transmission and other equipment in the industrial production process, to achieve automatic control and regulation. At the same time, it is also suitable for process control, machine control, intelligent buildings, energy management and other fields. In addition, the MVME6100 also has high-speed computing power and multi-tasking capability, which can handle multiple control tasks at the same time, improving production efficiency and management level.



The role of MOTOROLA MVME6100 digital output module is mainly used for control tasks in industrial production processes, such as controlling actuators, switch states, etc. It can output digital signals according to the control logic and algorithm to realize the control and regulation of the production process. At the same time, it is also commonly used in the control of mechanical equipment, such as motors, valves, actuators, etc., through the output of digital signals, you can achieve the control of mechanical movement, position and speed. In addition, it is often used in automated control systems, such as process control, robot control, building automation, etc., which can interact with other control devices and systems to achieve automated control tasks.

The use of MOTOROLA MVME6100 digital output module can generally refer to the following steps:

Connection module: The MVME6100 digital output module is connected to a computer or other controller, which can be connected using the VME bus or other communication interface.

Setting parameters: Set the parameters of the MVME6100 module according to the actual application requirements, including digital output channel, output type, level signal, etc.

Write control program: Use programming language (such as C/C++, assembly language, etc.) to write control program, according to the actual control logic and algorithm, to achieve the control of MVME6100 module.

Debugging program: After writing the control program, debugging is needed to ensure that the program can correctly control the MVME6100 module and related devices.

Run the program: Download the control program to the MVME6100 module and start the program to achieve the control of the digital output module.

It should be noted that when using the MOTOROLA MVME6100 digital output module, it is necessary to follow the relevant safety specifications and operating guidelines to ensure the stability and security of the system. At the same time, in the process of use, it is also necessary to carry out regular maintenance and maintenance to ensure the normal operation and service life of the module.
