Description
Manufacturer:B&R
Model:X20CP1486
Type:CPU Module
Core Processor:Intel x86-based, 100 MHz-compatible
Onboard Interfaces:Ethernet, POWERLINK, and USB
Expansion Slots:1 slot for modular interface expansion
Memory:32 MB SDRAM
Power Consumption:Internal I/O: 0.6 W
Input Voltage:24 VDC -15% / +20%
Input Current:Max. 2.2 A
Operating Temperature Range:-40°C to +85°C
Protection Rating:IP20
Dimensions:Compact design suitable for various industrial environments

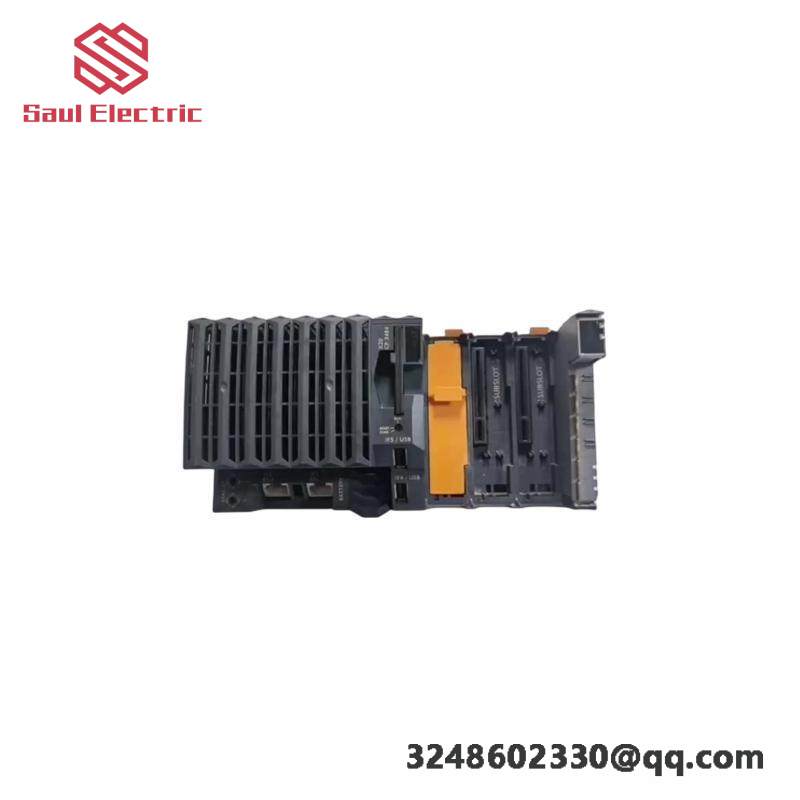

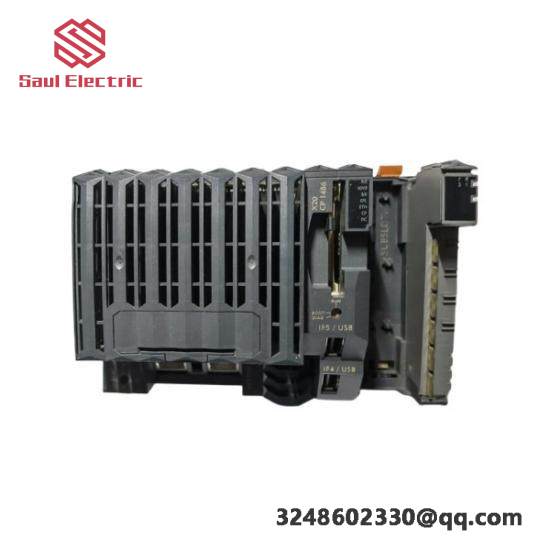

The B&R X20CP1486 is a cutting-edge PLC module designed for industrial automation applications. Built with an Intel x86-based CPU running at 100 MHz, this module provides reliable and efficient performance. With onboard interfaces such as Ethernet, POWERLINK, and USB, it facilitates seamless communication and data transfer. The module includes a single slot for modular interface expansion, allowing users to customize and enhance its functionality. Equipped with 32 MB of SDRAM, it ensures smooth operation and quick response times. The input voltage range of 24 VDC (-15% / +20%) and a maximum input current of 2.2 A make it suitable for a wide range of industrial environments. The module’s low power consumption and compact design contribute to its efficiency and ease of integration into existing systems. Status indicators provide real-time information on the module’s performance, making it easy to monitor and maintain. The B&R X20CP1486 is ideal for applications requiring high reliability and advanced control capabilities, such as manufacturing processes, automotive assembly lines, and energy management systems.
