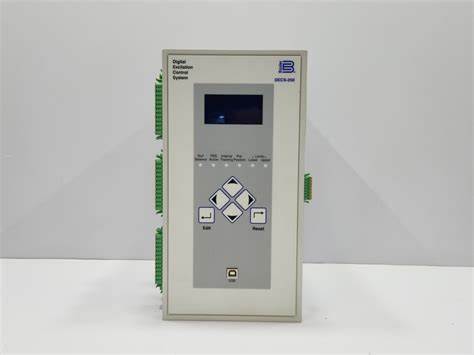

BASLER DECS-250 TYPE CN1SN1N Digital automatic regulator

Description

BASLER DECS-250 TYPE CN1SN1N is a digital automatic regulator, specifically a digital excitation control system. It has the following features:

True RMS measurement: Able to measure single-phase or three-phase voltage and current.
Multiple operating modes: including AVR/FCR/FVR, power factor and reactive mode.
Built-in protection features include overexcitation limit, low excitation limit, stator current limit, reactive power limit, low frequency limit or V/Hz limit, and rotating diode monitoring (EDM).
Trend, wave, and event sequential logging: Provides a detailed record of system status.
Programmable input/output contacts: Features 16 programmable input contacts and 12 programmable output contacts, as well as compatible I/O expansion modules.
BESTCOMSPlus® software: provides simple drag and drop logic programming, real-time icon function and advanced PID automatic matching function to simplify parameter setting.
Powerful PWM power unit: provides high initial response and ADAPTS to different systems such as self-shunt, auxiliary winding, PMG or DC excitation.
In addition, the DECS-250 has a variety of communication interfaces, including USB, RS-232, RS-485, CAN bus and Ethernet, as well as the optional Profibus communication protocol. The products have passed several certifications, including CSA, UL, CE EMC and LVD, as well as Gost-R, BV, GL and DNV. In terms of physical characteristics, the DECS-250 weighs 6.62 kg and measures 6.26 “x 12.00” x 8.62 “.

The BASLER DECS-250 TYPE CN1SN1N digital automatic regulator has a wide range of application cases in different industries, and the following are some specific application scenarios:

Power systems: The DECS-250 digital automatic excitation regulator can be used in power systems to provide accurate voltage, reactive power and power factor regulation, as well as system response and generator protection for abnormal situations. Its built-in generator protection features (e.g. 27/59, 81O/U, 32R, 40Q) and configurable protection features (e.g., overexcitation limit, low excitation limit, stator current limit, etc.) make it ideal for power systems.

Industrial automation: In the field of industrial automation, the DECS-250 enables complex control logic and system expansion with its rich input-output contacts (16 programmable input contacts and 12 programmable output contacts) and compatible I/O expansion modules such as CIM-2020 and AEM-2020.

Generator control: The DECS-250 offers a wealth of generator measurement functions and built-in generator protection, making it excellent in generator control. Its automatic regulation function and powerful PWM power unit can be adapted to different excitation systems such as self-shunt, auxiliary winding, PMG or DC excitation.

Grid Stability: Optional Power System Stabilizers (PSS) meet stringent grid requirements and help the grid remain stable as load changes. The DECS-250’s auto-tuning function automatically measures system response and creates PID parameters to ensure optimal system response.

Multi-machine parallel system: The network load sharing function of the DECS-250 allows multiple units to achieve reactive power distribution of all generator outputs to loads in the network through Ethernet communication, which is suitable for complex parallel systems.

Data acquisition and monitoring: The DECS-250 provides trend, wave and event sequential recording capabilities, making it very useful in data acquisition and monitoring systems. Its intuitive BESTCOMSPlus® software simplifies complex parameter Settings and reduces parameter setup time.

Environmental adaptability: The DECS-250 is capable of operating in extreme environments, such as operating temperatures of -40°C to +60°C and storage temperatures of -40°C to +85°C, making it suitable for a variety of harsh environments.

These application cases demonstrate the versatility and flexibility of the DECS-250 digital automatic regulator in different industries.
