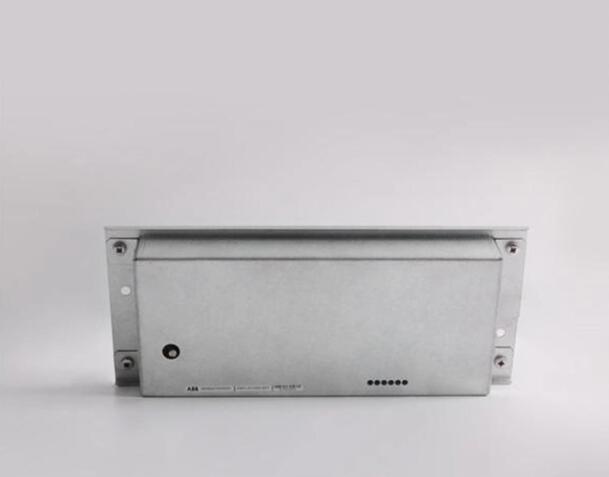

ASE2UDC920AE01 3BHB022793R0001 DC power module

Description

ASE2UDC920AE01 3BHB022793R0001 DC Power module is a high-performance, multi-function controller module produced by ABB. Here is a detailed overview of the module’s main features and specifications:

Module overview:
ASE2UDC920AE01 3BHB022793R0001 is a control module designed for industrial automation and control systems.
Hardware configuration:
Equipped with 2 channels, with powerful processing power.
In terms of memory, the built-in 64MB I-die SDRAM and 2MB SRAM ensure high efficiency of data processing.
Technical features:
Supports the protocols that DeviceNet executes on the card, providing high-performance data transfer.
Equipped with diagnostic LED for easy troubleshooting.
The UCMM (Unconnected Message Manager) function supports Group 1, Group 2, and Group 3 dynamic explicit connections.
Supports simultaneous execution of the second set of client (master) and server (slave) operations.
Compatible with all DeviceNet standard baud rates: 125kbit/s and 500kbit/s.
Supports polling, strobe, Change State (COS), and cyclic I/O messaging.
Supports sharding explicit and I/O messaging, as well as the client (master) explicitly sending messages to slave devices.
Supported operating systems and drivers:
Supports Microsoft Windows NT4/2000/XP operating system.
Provides console software tools, including OPC server configuration and diagnostic tools.
Provides documented memory mapping and sample C source code interface for Windows 32-bit DLL custom driver development.
Application field:
Widely used in industrial automation, power system control, process control, machinery control, building automation and remote monitoring and control and other fields.
Specifically, it can be used for production line control, machine control, generator and transformer monitoring and control, process parameters monitoring and control, precise control of mechanical equipment and automation systems, as well as lighting, air conditioning, security systems and access control systems in buildings.
Working conditions:
Working power supply: 220V/380V ±10% 50HZ.
Ambient temperature range: -10 ° C to 40 ° C
Note: Ensure that there are no gas vapors, chemical deposition dust, dirt and other explosive media around the product that seriously affect the transformer insulation.
Module advantages:
Strong versatility: adapt to the needs of different fields and different application scenarios.
Strong programmability: supports a variety of programming languages and programming methods, providing flexible control and configuration options.
High reliability: with perfect self-diagnosis and troubleshooting functions to ensure the safe and stable operation of the system.
Modular design: can be used in combination with other controller modules and sensors to form a complete control system.
