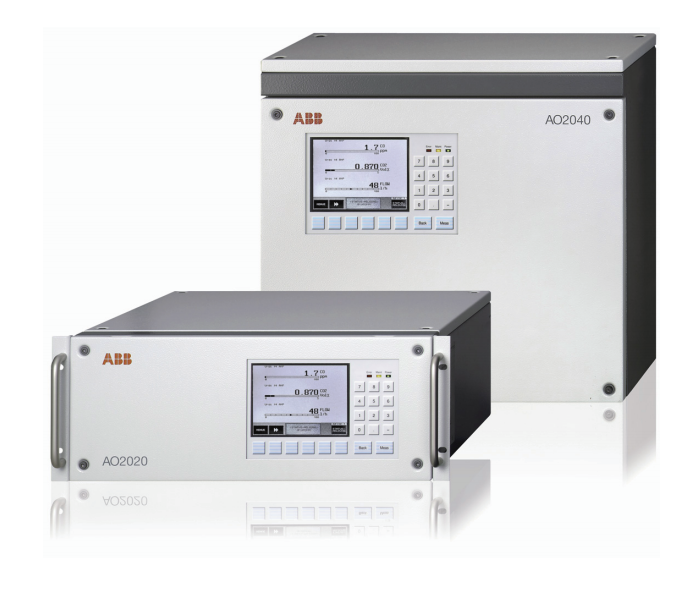

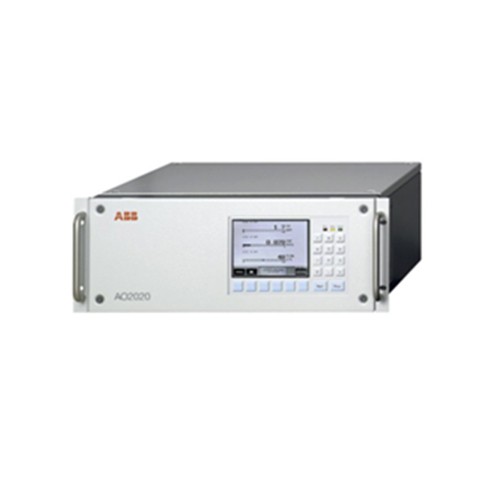

AO2020 Gas analyzer

Description

The AO2020 gas analyzer is a powerful gas analysis equipment, the following are the details and features of it:

Main technical indicators:
Analysis object: Can simultaneously measure a variety of gas components, suitable for a variety of complex gas analysis needs.
Weight: Depending on the configuration, the weight may vary from about 15kg (single channel) to 21kg (dual channel).
Power consumption: Single-channel power consumption is about 40VA, while dual-channel power consumption is about 70VA, showing low energy consumption characteristics.
Power requirements: It can work in the voltage range of 100-240VAC±10% and the frequency is 48-63HZ, with high adaptability.
Linear error: ±0.5% FS (full scale), to ensure the accuracy of the measurement results.
Response time: less than 3 seconds, to achieve the ability to respond quickly.
Analog output: 0/2/4-20mA, maximum load 750Ω, easy to connect and communicate with other devices.
Measurement drift: ±1% FS/ week, showing good long-term stability.
Measuring range: can be set according to application requirements, the instrument has 4 ranges, and has automatic range switching function, convenient for users to adjust according to actual needs.
Technical features:
High precision: Using advanced infrared spectroscopy technology, it can accurately detect and analyze various gas components and concentrations.
High reliability: After strict quality control and testing, it has excellent stability and reliability, suitable for various industrial applications.
Easy to use: With an intuitive user interface and simplified operation menus, users can easily get started and operate.
Multiple measurement modes: Suitable measurement modes can be selected according to different measurement requirements to improve the accuracy and efficiency of measurement.
Application field:
AO2020 gas analyzer is suitable for environmental monitoring, industrial process control, energy management and other fields. It can help users understand the gas composition in the environment in real time, so as to take appropriate measures to ensure safety and environmental protection.
Design features:
With a modular design, the AO2020 can be freely combined into tailor-made solutions and can be upgraded or extended at any time with new features.
Remote module is easy to connect and centralized operation, convenient for users to remote monitoring and management.
Compact design, up to 6 measuring components, precise internal functional control, designed for easy maintenance.
